Hydro-pneumatic press 74
stampingjoininground ram

Hydro-pneumatic press - 74 - SCHMIDT Technology - stamping / joining / round ram
Hydro-pneumatic press - 74 - SCHMIDT Technology - stamping / joining / round ram
Add to favorites
Compare this product

Characteristics

Operation
hydro-pneumatic
Function
stamping, joining
Structure
round ram
Other characteristics
with stroke force monitoring
Force

Max.: 220 kN

Min.: 100 kN

Description

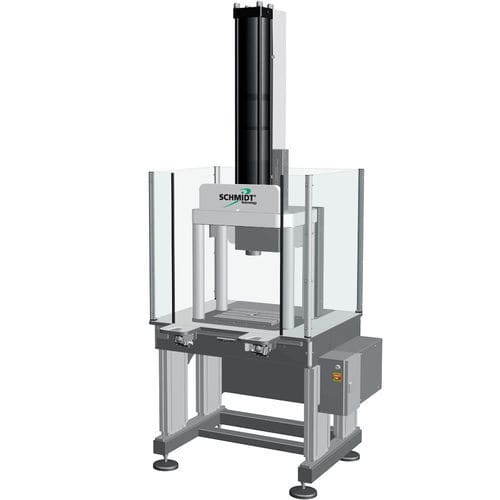

SCHMIDT® HydroPneumaticPress H-frame design with and without force / stroke monitoring. Maximum press force from 100 kN to 220 kN. In combination with the SCHMIDT® PressControl 75 or 700 controller, the presses become EC type-tested, CE-compliant workstations, optionally with process monitoring. Features Stable frame with low bending for the absorption of high forces Flexible tool location in the fixture mounting plate due to replaceable centering bushing with precision bore The large working area offers sufficient space for large tools The force is determined via a pressure transducer with force /stroke monitored presses
