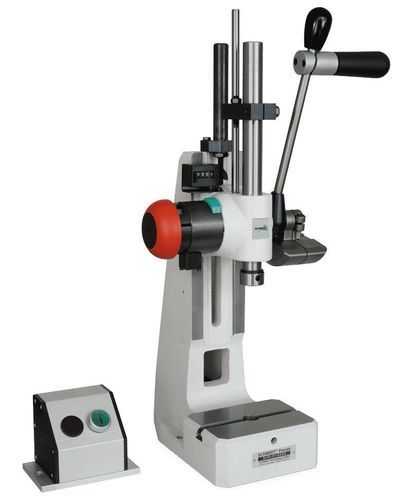

Two-hand control with push-button

Product description
Monotonous, hand‑operated press applications can create a risk of injury. Equipping hand lever presses with a mechanical stroke release converts them into safety‑oriented units with a mechanical two‑hand control of the ram movement.

Operation
The mechanical stroke release is unlocked by releasing the locking mechanism with one hand; only then can the ram be moved via the hand lever with the second hand.

• mechanical stroke release
• external pushbutton: alternatively the locking mechanism can be unlocked by a pushbutton

Features and benefits

• locking function across the entire ram stroke
• stroke release optionally also via external pushbutton
• self‑holding locking function (spring‑guided)
• tamper‑resistant release button
• curve‑guided axle clamping (patented)

Availability
The stroke release for hand lever presses is available as a retrofit kit.

Characteristics / Specifications

• two‑hand operation through mechanical locking and unlocking function
• locking function across the entire ram stroke
• option: unlocking via external pushbutton
• self‑holding, spring‑guided locking function
• tamper‑resistant release button
• curve‑guided, patented axle clamping
• delivery form: retrofit kit for hand lever presses
