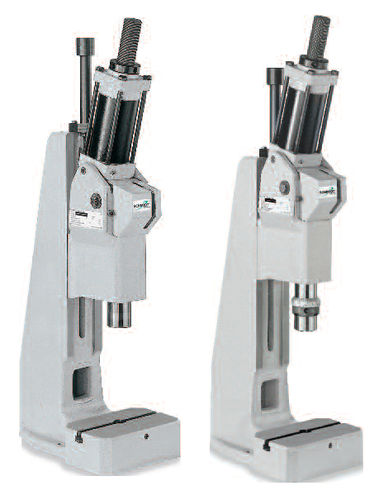

Pneumatic press assemblyround ramsquare ram
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- assembly
- Structure
- round ram, square ram, downstroke, C-frame, toggle
- Other characteristics
- with round ram
- Force
Min.: 15 kN
Max.: 60 kN
- Opening
Min.: 90 mm
(4 in)Max.: 600 mm
(24 in)
Description
The SCHMIDT® PneumaticPress product family in toggle lever design with maximum force at the stroke end is a modular system that optimally meets the requirements from the areas of forming, joining and assembly in the press force range from 15 to 60 kN.
In combination with the SCHMIDT® PressControl 75 or 700 control system, the presses become EC type-tested, CE-compliant workstations, optionally with process monitoring.
The press systems can be used in single cycle as well as in automatic mode.
* Cross hole with locking screw in the press table for safe fixture of tool
* Accurate adjustable ram position via fine adjustment (type 33)
* T-slot with set screw in fixture mounting plate to secure bottom tool
