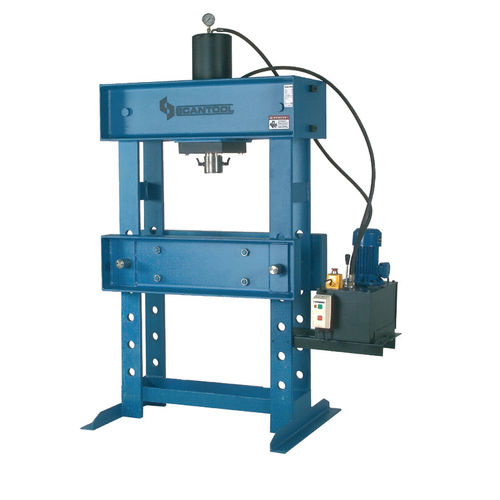

Electro-hydraulic press WSP 60 NL manualmotorizedjoining
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Operation
- electro-hydraulic, manual, motorized
- Function
- joining
- Applications
- panel
- Other characteristics
- shop
- Force
588 kN
- Stroke
400 mm
(15.748 in)- Max. pressure
259 bar
(3,756 psi)- Working speed
2 mm/s
- Return speed
11 mm/s
- Hydraulic pump power
1.5 kW
- Hydraulic tank volume
30 l
(7.9 gal)- Weight
685 kg
(1,510 lb)
Description
Can be operated either with the motor or manual hydraulic pump. The motorised pump has two speeds: fast feed and working speed. The manual hydraulic pump can be used for fine adjustments to the press if projects require great precision. In addition, pressure can be adjusted from the control panel.
Movable cylinder
Chains for lifting the pressing table
Optional accessories: Pressing block
