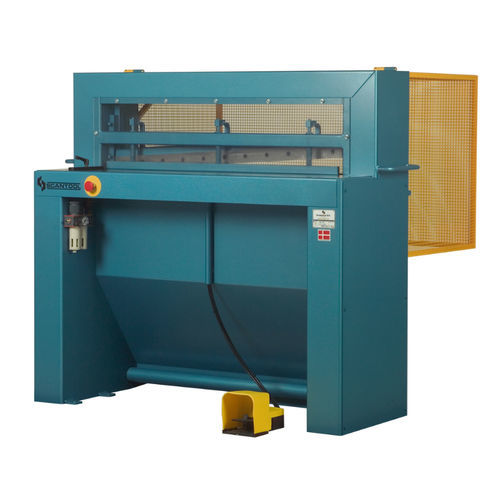

Pneumatic shear TSP 200

for metalguillotineautomatic

• Danish top quality and finish to the smallest details • Solid, compact welded steel construction • Operated pneumatically by a pedal • Cuts metal, plastic foil and other materials • Automatic sheet holder coated with neoprene rubber • Offers good visibility of the complete cutting length • The knives are made of strong tool steel, and are reversible which doubles the cutting surface • Has a sliding joint and the knife can be adjusted easily using the 6 Allen screws and counter nuts • Built in working light • Safety system according to CE Regulations • Emergency stop. • Working table with adjustable angle stop and safety stop. • Manual back gauge with millimetre gauge up to 550 mm. Product Specifications Back gauge (mm) 550 Cutting/min. 19 NL/Cycle 34 Side stop (mm) 200 Tank capacity (L) 80 Grinding angles 3° Manual back gauge 1 Length (mm) 1380 Width (mm) 1210 Height (mm) 1300 Net weight (kg) 250
