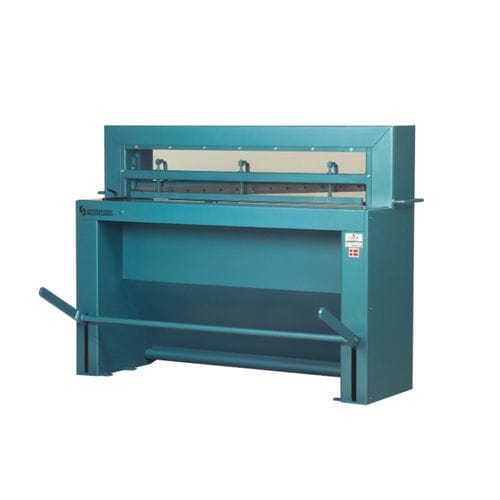

Manual shear TSM 1300

for metal sheets

SCANTOOL TSM 1050 + 1300 are strong and compact welded steel construction. Danish design and highest quality. This model is foot-operated and very suitable for cutting metal and all other materials. The material is being hold in place by neoprene-coated sheet holder which prevent for damages/marks on the metal sheet and ensure a perfect cut. The knife is reversible and made of high-speed steel. Standard is also adjustable angle stop on the working table , built-in working light and a manual back gauge. Built-in light. Product Specifications Cutting angle 3° Back gauge (mm) 550 Length (mm) 1680 Width (mm) 880 Height (mm) 1300 Net weight (kg) 198
