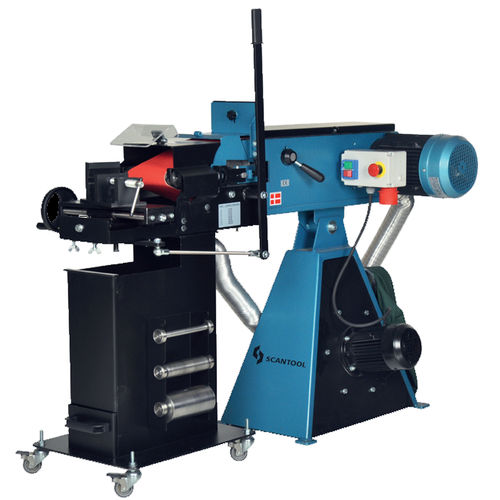

Electric notching machine SCANTOOL 75RBX

tubewith abrasive belt

Scantool 75RBX is, first and foremost, a pipe notcher which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm. However, the RBX models are more than just efficient pipe grinders. They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finished. They can then be used for standard grinding tasks. If you need to grind the pipes with a centreless grinder, you can attach the centreless unit onto the 75 model: 3 grinding processes in one machine. Model Scantool 75RBX is delivered complete with built-in exhaust system. Product Specifications Rpm 2800 Voltage 3x400V-50 Hz Grinder Belt (mm) 75x2250 Saw speed (m/min) 30 Pipe dimension (ø mm) 17-100 Grinding table (mm) 75x605 Exhaust (m³/h) 630 Grinding angles 0-60° Number of spindle speeds 1 On Pedestal 1 With exhaust 1 Length (mm) 1350 Width (mm) 570 Height (mm) 1020
