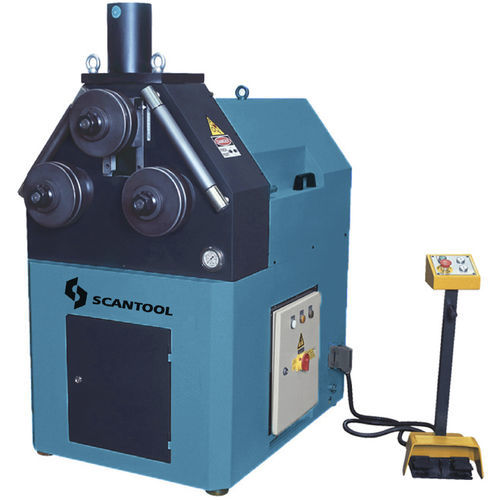

Hydraulic bending machine SCANTOOL PV-60
motorizedtubeprofile

hydraulic bending machine
hydraulic bending machine
Add to favorites
Compare this product

Go to the Scantool Group website for more information

Characteristics

Operation
hydraulic, motorized
Product handled
tube, profile
Number of rollers
3 drive rollers
Displacement
horizontal, vertical
Control
digital
Bending capacity

60 mm
(2 in)

Bending force

16 tf

Roller diameter

215 mm
(8 in)

Overall length

1,000 mm
(39 in)

Overall width

1,400 mm
(55 in)

Total height

1,650 mm
(65 in)

Weight

950 kg
(2,094 lb)

Voltage

400 V

Total power

1.5 kW
(2 hp)

Description

Profile and pipe bending machine • Steel welded construction frame • 3 rolls are powered • Hardened shafts from special steel • Top roll hydraulic moveable • Horizontal and vertical working position • Standard rolls • Guide rolls • Brake motor • Mobile control panel Special features • Pipe/tube bending rolls • Profile bending rolls • Angle bending rolls • Digital read-out • Special lateral angle guides.
