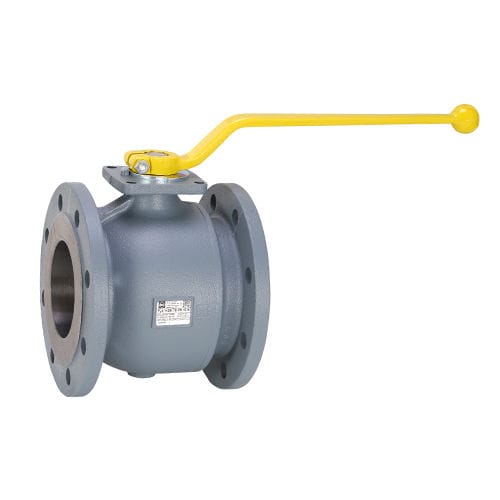

Shut-off valve floating ballleverfor gas
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever
- Function
- shut-off
- Media
- for gas, for air, for steam, for compressed air, for natural gas, for CO2, for inert gases, propane, for LNG
- Body
- flange, 2-piece, cast iron
- Applications
- industrial, for industrial applications, for the chemical industry, for the food industry, for the gas industry, for compressors, for burners, blower, for pipes, refinery, process, for heating systems, HVAC, for boiler, for the petroleum industry, for bulk materials, for gas turbines, for vacuum, for pipelines, for tank, for ventilation systems, for pipework, for HVAC installations
- Associated function
- exhaust
- Other characteristics
- ISO, compact, high-pressure, standard, fire-safe, with connection, bidirectional, top-mounted, high-performance, DIN, full-flow, springless, rugged, pressure seal, for nitrogen, with lockable toggle, normally closed, locking, low-pressure, high-flow, for low flow rates, single-acting, wear-resistant
- DN
Max.: 200 mm
(7.874 in)Min.: 25 mm
(0.984 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 20,000 m³/h
(706,293.33 ft³/h)Min.: 0 m³/h
(0 ft³/h)
Description
Our flanged ball valves consist of a two-piece nodular cast iron body and are in fire-safe design. The floating ball inside the body, which is chambered on three sides, is adjusted with the handle. Optionally, the handle can be replaced by an electric or pneumatic rotary actuator.
Gas ball valves are mainly used to shut off the gas flow in gas trains or gas installations before and after other equipment like gas pressure regulators, gas meters etc.
These ball valves are suitable for all gases according to DVGW G260 / G262 and all other non aggessiven gases (others upon request). They are certified according to DVGW, DIN EN 13774, PED, GAD, CE.
Key Features
- The ball valves are made in two pieces "Screwed" and "full port" design. Body material spheroidal graphite cast iron
- fire safe design
- TA-Luft certified
- floating ball, free of silicone
- face to face length according to DIN558-1 line 14
- grounding 1K water based varnish (other paintings upon request)
