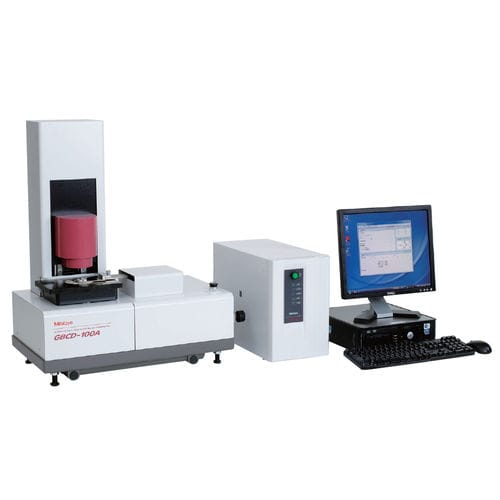

Mitutoyo calculation type gauge block automatic check equipment GBCD-100A is used in rectangular gauge blocks ranging from 0.5mm to 100mm for measurement of length.
A test block is automatically compared by the device to a suitable reference gauge block. It has a dual-head system, with upper and lower gaging heads, which ensures that the warp of thinner gauge blocks do not have any effect on compensation result.
Its measurement configuration works as standard gauge block with 1 cycle of automatic comparison measurement. The gauge block comparator has a compensation master.
Gauge Block Comparator GBCD-IOOA
SERIES 565 — Automatic Comparator with Dual Gage Heads
• Measures the length of rectangular gauge blocks in the size range 0.5 mm to 1m mm. It automatically compares a test bQ with an appropriate reference gauge block.
• The compensation result is not affected by any warping of thinner gauge blocks due to the use of and lmver gage heads (dual-head system).
• Measurement configuration: 1 cycle of automatic ccmparison measurement with a standard gauge bm.
