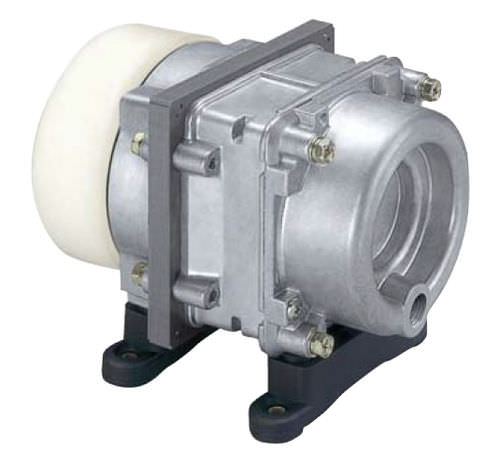

Linear piston compressor (stationary)
max. 0.35 bar, 35 l/min | AC 0401A Nitto Kohki Deutschland

Rated Pressure 0.1 bar
Rated Airflow 35 l/min
Rated Voltage 230 V
120 V
Maximum Pressure 0.35 bar
Power Consumption 38 W
35 W
Rated Frequency 50 Hz
60 Hz
Live Expectancy 10.000 h
Outlet ISO Rc 1/4 female threaded
Duty Cycle Continuous
Coil Insulation Class E or its equivalent (JETL) and B for UL-1450

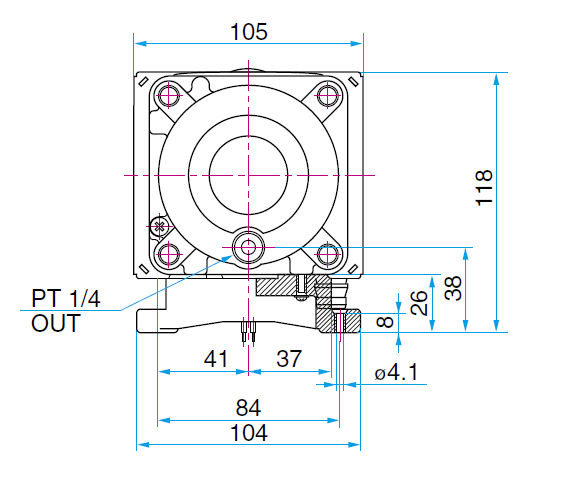

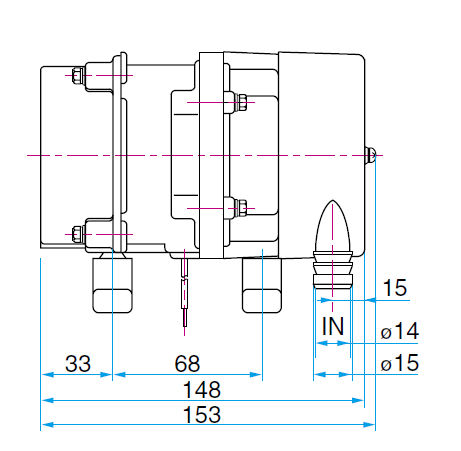

Mounting Dimensions (L x W) 68 x 84 mm
Gross Weight 1.9 kg
Leadwire Length 200 mm
