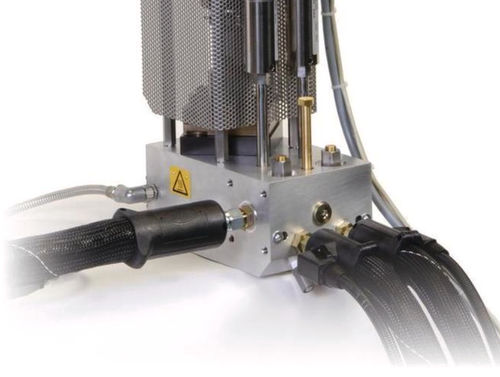

Adhesive mixing and metering unit GP20 series

GP200 remote metering stations expand production capabilities by increasing delivery points of existing melters with metered add-on precision. They provide an economical alternative to purchasing an additional melter, converting from non-metered delivery, or adding application points. • Expand application delivery points by adding one or more pumping stations between a melter and the point of application. • Improve pattern consistency and quality with metered adhesive delivery to control pressure drops that can cause hammerheads, inconsistent add-on rates per product, and burn-through on heat-sensitive substrates. • Choose from servo or AC drives, and one or two single- or dual-stream metering pumps in a wide range of outputs. • Monitor adhesive temperature and pressures via the melter control system or an auxiliary control module. • Link multiple stations together to add pumping capacity and reduce total hose length, while minimizing adhesive degradation, downtime and service.
