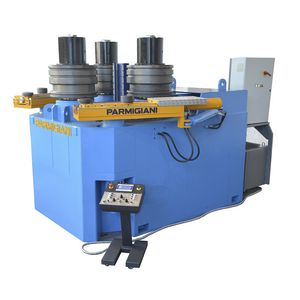

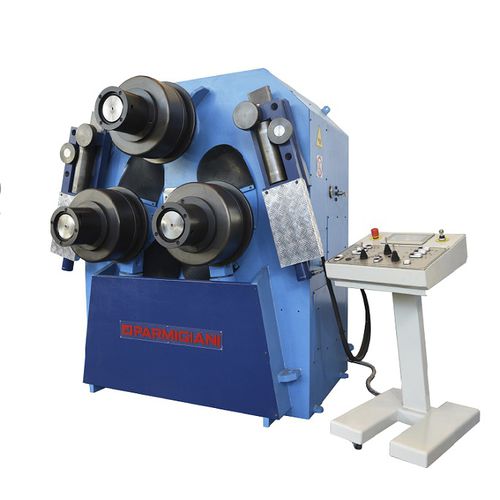

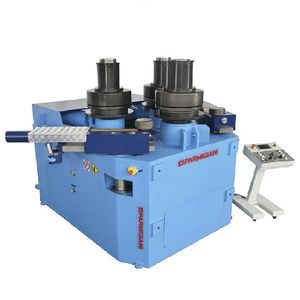

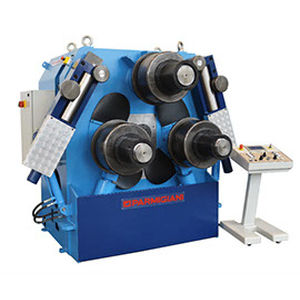

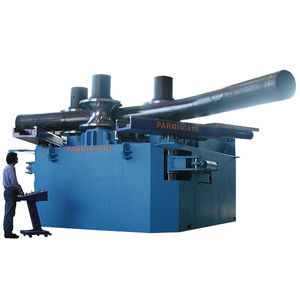

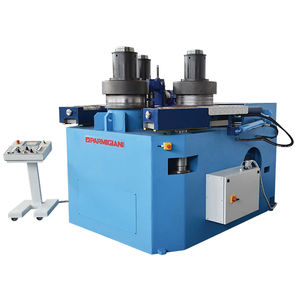

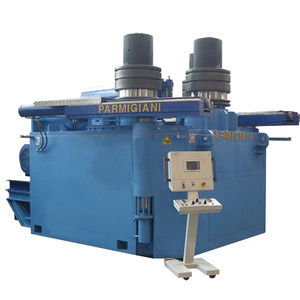

Hydraulic bending machine PLANET 30
tubeprofileCNC

hydraulic bending machine
hydraulic bending machine
hydraulic bending machine
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Product handled
tube, profile
Control
CNC
Other characteristics
universal

Description

■ Machine combined design, for working with vertical and horizontal axis. ■ N° 3 driving rolls (all). ■ Fully hydraulic drive: Rolls driven by low speed hydraulic motor + planetary reduction gear. ■ Hydraulic adjustment of the two lower rolls independent of each other (double prebending). ■ Hydraulic unit with pilot operated check valves to maintain constant the lower rolls position during bending-phase. ■ All welded steel frame, monobloc type for added strength and rigidity, stress relieved after welding. ■ Shaft in alloyed high-strength chrome-nickel forged steel (heat treated), mounted on long life grease lubricated self-alignment spherical roller bearings. ■ Bending rolls in High Tensile alloyed Forged Steel, heat treated. ■ N° 2 Lateral guiding rolls, each one adjustable in four directions. ■ Total protection from overloads by hydraulic pressure relief valves. ■ Electric and Hydraulic equipment by first class European manufacturers. ■ Centralized control panel with low voltage control designed for "easy-service", portable to permit optimum location for operator convenience and safety. ■ Control panel with push button controls for all functions.
