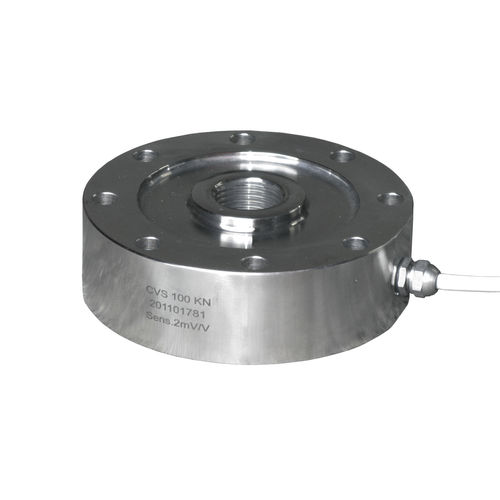

Universal load cell CVS
compressionpancake typestrain gauge

universal load cell
universal load cell
universal load cell
Add to favorites
Compare this product


Characteristics

Type
compression
Form
pancake type
Technology
strain gauge
Other characteristics
stainless steel, universal, rugged, IP67, high-precision
Rated load

Max.: 100,000 kg
(220,462.26 lb)

Min.: 500 kg
(1,102.31 lb)

Description

The universal CVS load cell, built in stainless steel and designed for force measurements, is able to work both in traction and in compression and has excellent characteristics of linearity, precision and resistance. In fact, it withstands overloads of over 300% and has waterproof protection for use in severe environmental conditions. Furthermore, the load cell is equipped with an M8-PG7 cable gland and a 5-meter shielded cable with 4 conductors. Technical Specifications Rated load RL: 5, 10, 20, 30, 50, 100, 200, 300, 600, 1000 kN Combined error: ±0.08 % RO Repeatability: ±0,02 % RO Creep (20 minutes): ±0,02 % RO Safe overload: 150 % RL Ultimate overload: > 300 % RL Material: Stainless steel AISI 17-4PH Degree of protection: IP67 Deflection: 0.35 mm Compensated Temperature: -20 ÷ +70 °C Temperature range: -10 ÷ +50 °C Temperature effect on zero balance: < ±0.005 % RO/°C Temperature effect on output: < ±0.005 % RO/°C Rated output RO: 2.0 mV/V ±0.1 % Zero balance: 5000 MOhm Input resistance: 700 ±20 Ohm Output resistance: 700 ±5 Ohm Recommended input: 2 ÷ 15 Vdc/ca
