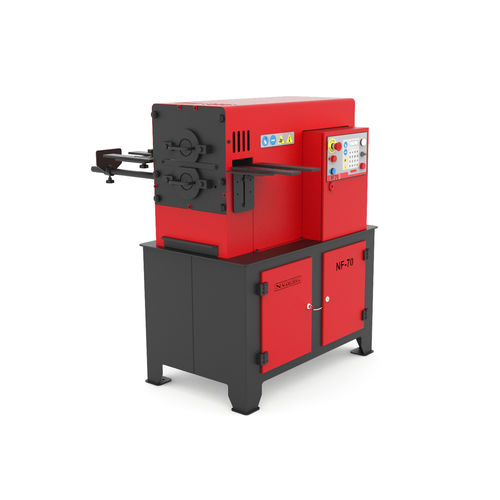

Hot forming machine NF70

barfor ironsteel

The Wrought iron Machine Nargesa NF70 smashes and molds irons up to obtaining the desired shape depending on the mold design. It forges arrow ends or lances of different kinds; flat, pyramidal, etc. It also makes baluster extremes to accomplish nice ornamental parts by changing the die. It forges and smashes balusters in the middle to make different designs. All Nargesa products are according to the CE regulations for the manufacturing of industrial machinery. Technical features Maximum capacity in round: Mild steel round of 20 mm. Maximum capacity in square: Mild steel square of 20 mm. Maximum capacity in flat bar: Mild steel flat bar of 40x10 mm. Digital screen. Turns programmer. Rotation speed: 20 rpm. Adjustable back gauge. With standard accessories wrought ends, flat ends, striated and pyramidal ends can be made. (See STANDARD TOOLING below). OPTIONAL ACCESSORIES (See below) If the customer asks for it, we make molds under request. Engine power: 5,5 KW/ 7 CV (HP). Three phased tension: 230/400 V. For other tension or single phased machines, please ask the manufacturer. Palletized lower bench to easily move the machine up to its working place or storage. The machine is sent completely mounted. Packaging with a wooden pallet NIMF15 and 3-layered cardboard box suitable for sea freight. Optional: Complete wooden packaging with fumigated wood NIMF15. ADVANTAGES: • - Easy handling: Any worker is able to carry out this job, even without any previous preparation. • - Readiness: Thousands of parts can be made in a sole working day. • - Value and prestige: There are few craftmen who can make this kind of wrought jobs.
