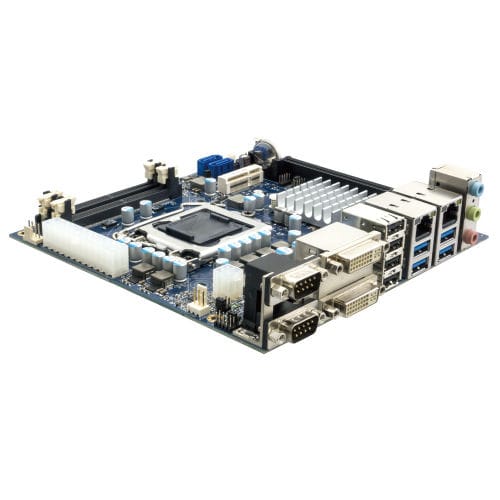

Mini-ITX motherboard BM-2502

Intel® Skylake ProcessorIntel® Core™ i7-6700TEIntel® Core™ i3-6100TE

Mini-ITX Intel ® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium ® / Celeron ® CPU ● Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 CPU ● 6 x COM, 2 x LAN, 9 x USB, 1 x LPT ● 2 x DVI, 1 x DP (internal) ● 2 x SATA, supporting RAID 0/1 ● 1 x PCIe (x16), 1 x half-sized mPCIe System BM-2502 Mini-ITX Intel ® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium ® / Celeron ® CPU CPU Support LGA1151 socket for Intel ® 7th / 6th Gen. Core™ i7 / i5 / i3 desktop CPU CPU List 7th Core™: i7-7700T(TE), i5-7500T(TE), i3-7100T(TE) 6th Core™: i7-6700(TE), i5-6500(TE), i3-6100(TE), Pentium® : G4400(TE) Celeron ® : G3900(TE) Chipset Intel ® H110/Q170 Memory Support 2 x SO-DIMM sockets, supporting 1866/2133MHz DDR4 memory up to 32GB BIOS AMI UEFI BIOS Watchdog 1~255 seconds watchdog timer selectable Power Supply ATX power (24+4 pin) Power Consumption +5V: 1.26A; +12V: 0.28A; +3.3V: 0.28A; +5VSB: 0.08A (CPU: i7 6700 3.4GHz) Dimensions 170 x 170 mm (6.69" x 6.69") Certifications FCC / CE O.S. Support Windows 10 64bit / Windows 8.1 64bit / Windows 7 32/64bit Graphics DVI 2 x DVI-D (rear I/O) up to 1920 x 1200 @60Hz DisplayPort 1 x DP (internal) up to 4096 x 2304 @60Hz Environment Operation Temp. 0°C~60°C (32°F~140°F) @humidity 20%~90% Storage Temp. -40°C~85°C (-40°F~185°F) @humidity 20%~95%
