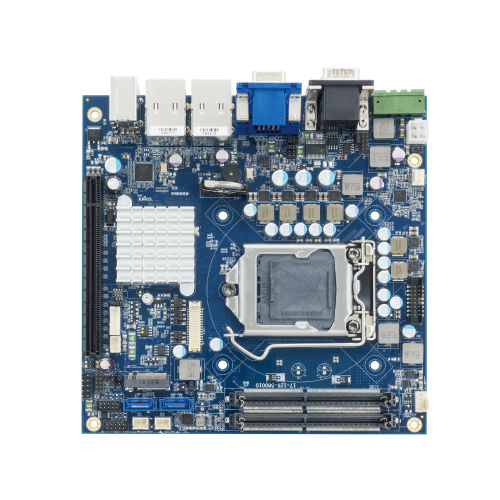

Mini-ITX motherboard BM-2503

ATXIntel® Core™ i5-6500Intel® Celeron® G3900

Mini-ITX Intel ® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium ® / Celeron ® CPU ● Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 CPU ● 2 x Gb LAN, 8 x USB ● 1 x VGA, 1 x DP, 1 x LVDS (internal) ● 2 x SATA III, supporting RAID 0/1 ● 1 x PCIe (x16), 1 x M.2 (2242-D2-M) System BM-2503 Mini-ITX Intel ® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium ® / Celeron ® CPU CPU Support LGA1151 socket for Intel ® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron ® desktop CPU CPU List 7th Core™: i7-7700T(TE), i5-7500T(TE), i3-7100T(TE) 6th Core™: i7-6700(TE), i5-6500(TE), i3-6100(TE) Pentium® : G4400(TE) Celeron ® : G3900(TE) Chipset Intel ® H110/Q170 Memory Support 2 x SO-DIMM sockets, supporting 1866/2133MHz DDR4 up to 32GB BIOS AMI UEFI BIOS Watchdog 1~255 seconds watchdog timer selectable Power Supply DC In 12V (rear I/O, phoenix 3 pins terminal block); ATX 4 pin power connector Power Consumption +12V: 10.3A (H110 SKU) +12V: 12.2A (Q170 SKU) Dimensions 170 x 170 mm (6.69" x 6.69") Certifications CE / FCC O.S. Support Windows 10 IoT / Windows 8.1 / Windows 8 / Windows 7 (Intel 7th generation CPU is ONLY compatible with Windows 10 IoT) Graphics VGA 1 x VGA up to 1920 x 1200 @60Hz (rear I/O) DisplayPort 1 x DP up to 4096 x 2304 @60Hz (rear I/O) LVDS 1 x LVDS, dual channel, resolution range: 800 x 600~1920 x 1200 (internal) Environment Operation Temp. 0°C~60°C (32°F~140°F) @humidity 20%~90% Storage Temp. -40°C~85°C (-40°F~185°F) @humidity 20%~90%
