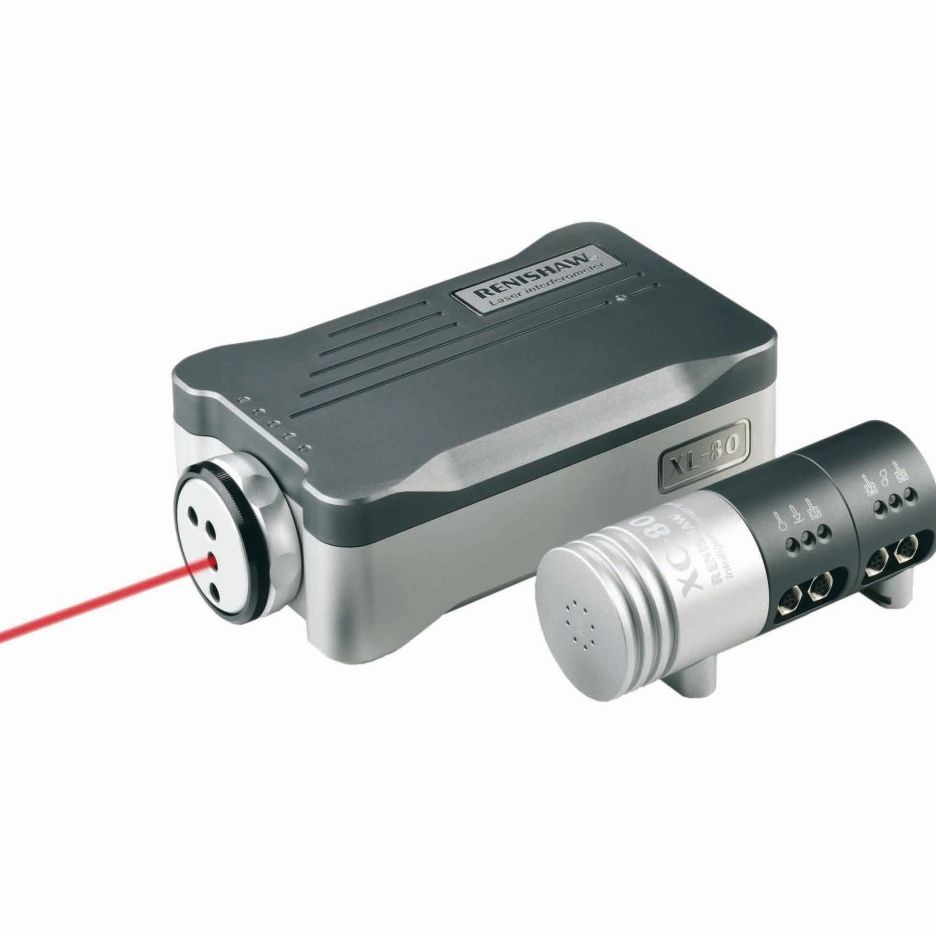

Calibration interferometer XL-80

laseropticalhigh-accuracy

Fast, accurate and extremely portable, it is no surprise the XL-80 system is the best selling calibration laser. Together with advanced software solutions and superior performance, the XL-80 can significantly improve your business performance. Renishaw has been designing, manufacturing and supplying laser systems for over 25 years. The XL-80 builds on that experience to deliver a real advance in system performance and operational benefits for users. Accuracy and dynamic performance: Linear measurement accuracy is an assured ±0.5 ppm thanks to a precision stabilised laser source and accurate environmental compensation. Readings can be taken at up to 50 kHz, with a maximum linear measurement speed of 4 m/s and a linear resolution of 1 nm, even at maximum speed. All measurement options (not just linear) are based on interferometric measurements, giving confidence in the accuracy of the data recorded. Ease of use: The XL-80 is quick and easy to set-up and use, reducing waiting time and increasing available measurement time, whilst still retaining the accuracy benefits of a pure interferometry based system. Both the laser and compensator connect to a PC via USB so there is no separate interface required and no complicated set-up to worry about. Total confidence: Quality of design, build and technical support are Renishaw's hallmarks. State of the art facilities and quality assured production that's vital whether you're dealing in microinches or nanometres. A standard 3 year warranty is evidence of our commitment to you, alongside a worldwide support network.
