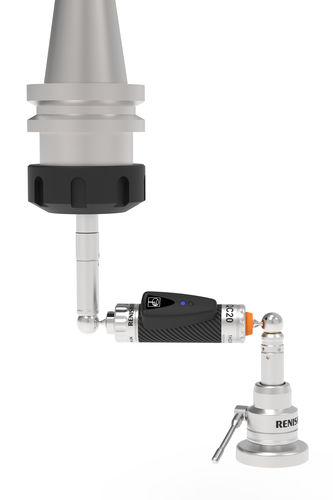

Telescopic ballbar QC20

wireless

The industry standard for quick, simple and effective machine tool performance verification. QC20 ballbar overview: The QC20 ballbar system draws on Renishaw's many years of experience with ballbar testing and offers significant performance and operational benefits: Bluetooth wireless technology ensures no wire handling issues, closed door operation and reduced possibility for system damage. Hardware and software which allows a 'partial arc' (220°) test. This gives you greater test flexibility including: Improved Z axis testing (no custom fixturing required). Tests where axis travel is limited (typically Z axis on machining centres and X axis on lathes). Ability to test 3 planes from a single set up, using 'partial arc' tests for 2 of the tests and present a 'volumetric analysis'. Faster data reading for enhanced analysis on small test circle and high feed rates. Enhanced Ballbar 20 software includes features for extended testing and greater ease of use.
