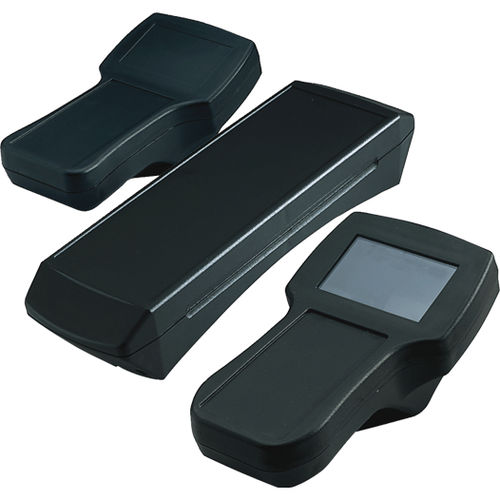

Handheld enclosure Beluga Ex series

portablemodularpolyamide

MODEL / PRODUCT FEATURE > Hand held enclosures as empty enclosures for Ex-applications > 3 enclosure sizes > Optional version with display openings The Beluga Ex series is available for hand-held enclosure applications in the Ex sector. These U-certified enclosures consisting of the Ex-approved material polyamide 12 feature Degree of Protection IP 65 and are used as basic components for gas-detection instruments and other Ex-sector applications. This product range comprises three sizes (the Beluga 180, Beluga 220 and Beluga 380). Types with a closed top and a display opening are available in the case of the two smaller enclosures sizes. For hand-held enclosure applications, the Beluga Ex includes a recess for Ex-certified membrane keypads. The service-temperature range for these enclosures is -20°C to +60°C. Technical Data Explosion protection:II 2G Ex e IIC Gb II 2D Ex tb IIIC Db Material:Polyamide 12 Certificates:IECEx PTB 09.0019U PTB 02 ATEX 1076U Colour:RAL 9005, jet black Ingress protection:IP 65 to EN 60529 Impact resistance:7 Joule to EN 60079-0 Flammability:UL 94 HB Surface resistance:<109 Ohm to IEC 60093 Temperature range:-20°C bis +60°C Other versions on request:EMC
