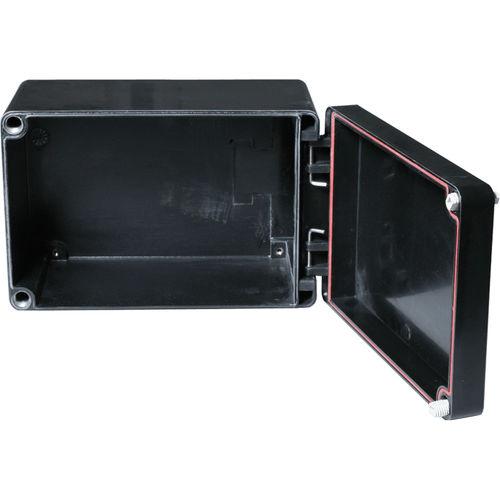

Wall-mount enclosure Ex Polyglas series

rectangularglass fiber-reinforced polyesteroutdoor

MODEL / PRODUCT FEATURE > Polyester Ex enclosure with hinged lid > Easy fitting of Ex components > Available as full assembled enclosure with terminals, cable glands and further Ex accessories or as empty enclosure, component certified The approved Ex enclosures of the Polyglas series consist of glass-fibre-reinforced polyester and are equipped with a hinged lid and with various closure types. Thanks to their robust design, these Ex Polyglas enclosures are used wherever components require protection against aggressive fluids and the elements. Typical indoor and outdoor applications include: > Distribution cabinets > Measuring and weather stations > Operating, control and monitoring systems The enclosure body consists of glass-fibre-reinforced polyester with a hinged lid. The Polyglas Ex enclosure's special lid closure system features a GRP turning bolt with differing closures. The locking cylinder and locking pin are corrosion-resistant. Technical Data Certificates:PTB 00 ATEX 1002 IECEx PTB 08.0004 EAC № TC RU C-DE.AA87.B.00971 Explosion protection:II 2G Ex e IIC T6/T5/T4 Gb II 2G Ex ia IIC T6/T5/T4 Gb II 2G Ex d e ia [ia] mb IIC T6/T5/T4 Gb II 3G Ex e d mb ia [ia] nA nC [op is] IIC T6, T5, T4 Gc II 2D Ex tb IIIC T80°C/T95°C/T130°C Db IP66 Material:glass fibre reinforced thermoset polyester, graphite added Colour:RAL 9011, graphite black Ingress protection:IP 66 to EN 60529 Impact resistance:7 Joule to EN 60079-0 Flammability:self-extinguishing, UL 94 V-0
