horizontal balancing machine / dynamic / for shafts / high-accuracy

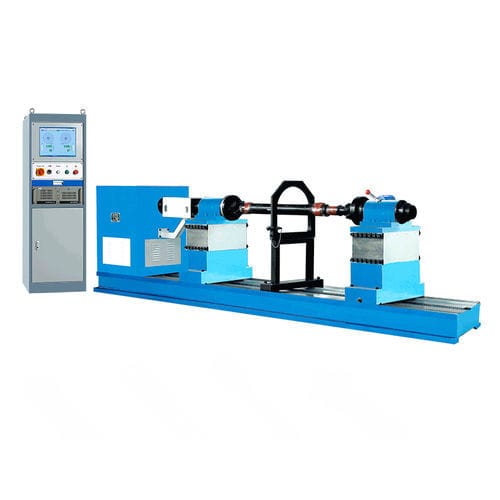

PHCW-1000/2000 Shanghai Jianping Dynamic Balancing Machine

{{requestButtons}}

Characteristics

  • Orientation:

    horizontal

  • Type:

    dynamic

  • Applications:

    for shafts

  • Other characteristics:

    high-accuracy, two-plane, automobile, modular

  • Weight on rotor:

    1,000 kg, 2,000 kg (2,204.6 lb)

  • Rotational speed:

    Max.: 1,200 rpm (7,540 rad.min-1)

    Min.: 450 rpm (2,827 rad.min-1)

Description

Balancing Machine for Drive Shaft

1.Specially designed brackets transmit mechanical force with high rigidity
2.Durable and reliable sensor possesses high sensitivity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Advanced electrical measuring system and friendly man-machine interface
5.PHCW Series drive shaft balancing machine is the special equipment used to check all kinds of drive shaft balance


Datos técnicos de un vistazo:PHCW-100 PHCW-200 PHCW-1000 PHCW-2000
Rango de peso de las piezas (kg):100 200 1000 2000
Longitud efectiva de la pieza(mm):2000 2000 3000 3000
Diámetro mayor de las piezas(mm):Φ130 Φ130 Φ400 Φ400
Diámetro máximo del tubo del eje de la pieza(mm):Ø120 Ø120 Ø300 Ø300
Velocidad equilibrada(mm):1600~3200 1200~3200 600-1200 450-1200
Potencia del motor(KW):1.5Frequency conversion 1.5Frequency conversion 3Frequency conversion 3Frequency conversion
Torsiòn del acoplamiento universal(N.M):60 60 300 300
Nivel de desequilibrio residual mínimo alcanzable(e mar )≤5g ≤5g ≤5g ≤5g
Tasa de reducciòn (%)≥85 ≥85 ≥85 ≥85
