Absolute rotary encoder GP04/1

gearpotentiometerblind-shaft

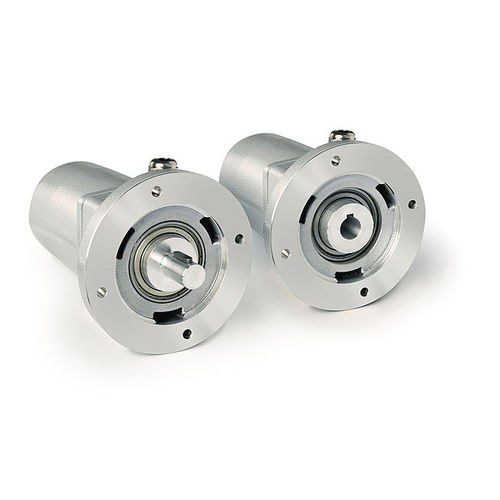

Geared potentiometer GP04/1 With solid or blind hole shaft Profile GP04/1: Extremely resistant to external influences Adaptation to various measurement distances owing to a wide range of gear ratios Integrated slip clutch to protect the potentiometer Potentiometer, power or voltage output IP65 protection category Feature - Technical data - Additional information Shaft - aluminum - IP52 - blacx-finished Steel - IP65 Housing - aluminum - Gear ratio - 0.2 ... 256 - Speed - ^500 rpm - depending on the transmission Shaft load rating - 21000 N - radial - 21700 N - axial Potentiometer service life - 1 x 106 revolution{s) - Electrical data ■ Encoder potentiometer type 01,1 hélix Feature Technical data - - Additional information Power rating - 1 W at 70 5C - 230 V Résistance - 5. 10 kQ - Résistance tolérance - ±10 % - Standard terminal résistance - 0.5% - Linearity tolérance - ±1 % - Design - hybride - ■ Encoder potentiometer type 02,10 helices Feature Technical data - - Additional information Power rating - 2 W at 70 !C - 230 V Résistance - 1. 5. 10 kQ - Résistance tolérance - ±5 % - Standard terminal résistance - 0.5% - Linearity tolérance - ±0.25 % - Design - wire - ■ Encoder potentiometer type 03, 10 helices Feature Technical data - - Additional information Power rating - 2 W at 70 !C - 230 V Résistance - 1. 5W. 10 kû - Résistance tolérance - ±5 % - Standard terminal résistance - 0.5% - Linearity tolérance - ±0.25 % - Design - hybride - ■Transducer, power output
