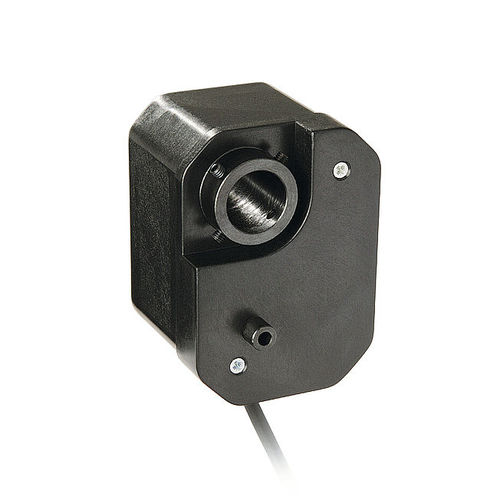

Absolute rotary encoder GP02

gearpotentiometerhollow-shaft

Geared potentiometer GP02 Compact design with through hollow shaft Profile GP02: Adaptation to various measurement distances owing to a wide range of gear ratios Compact, low-cost design Potentiometer or power output Easy mounting Feature Technical data Additional information Shaft - blacx-finished Steel - Housing - plastic - Gear ratio - 0.2 ... 128 - Speed - ^500 rpm - depending on the transmission Potentiometer service life - 1 x 106 revolution{s) - Electrical data ■ Encoder potentiometer type 01,1 hélix Feature Technical data - - Additional information Power rating - 1 W at 70 5C - 230 V Résistance - 1. 5. 10 kQ - Résistance tolérance - ±10 % - Standard terminal résistance - 0.5% - Linearity tolérance - ±1 % - Design - hybride - ■ Encoder potentiometer type 02,10 helices Feature Technical data - - Additional information Power rating - 2 W at 70 !C - 230 V Résistance - 1. 5. 10 kQ - Résistance tolérance - ±5 % - Standard terminal résistance - 0.2 % - Linearity tolérance - ±0.25 % - Design - wire - ■ Encoder potentiometer type 03, 10 helices Feature Technical data - - Additional information Power rating - 2 W at 70 !C - 230 V Résistance - 1. 5. 10 kQ - Résistance tolérance - ±5 % - Standard terminal résistance - 0.2 % - Linearity tolérance - ±0.25 % - Design - hybride - ■ Encoder potentiometer type 03/0.1, 10 helices Feature Technical data - - Additional information Power rating - 2 W at 70 !C - 230 V Résistance 5. 10 kQ
