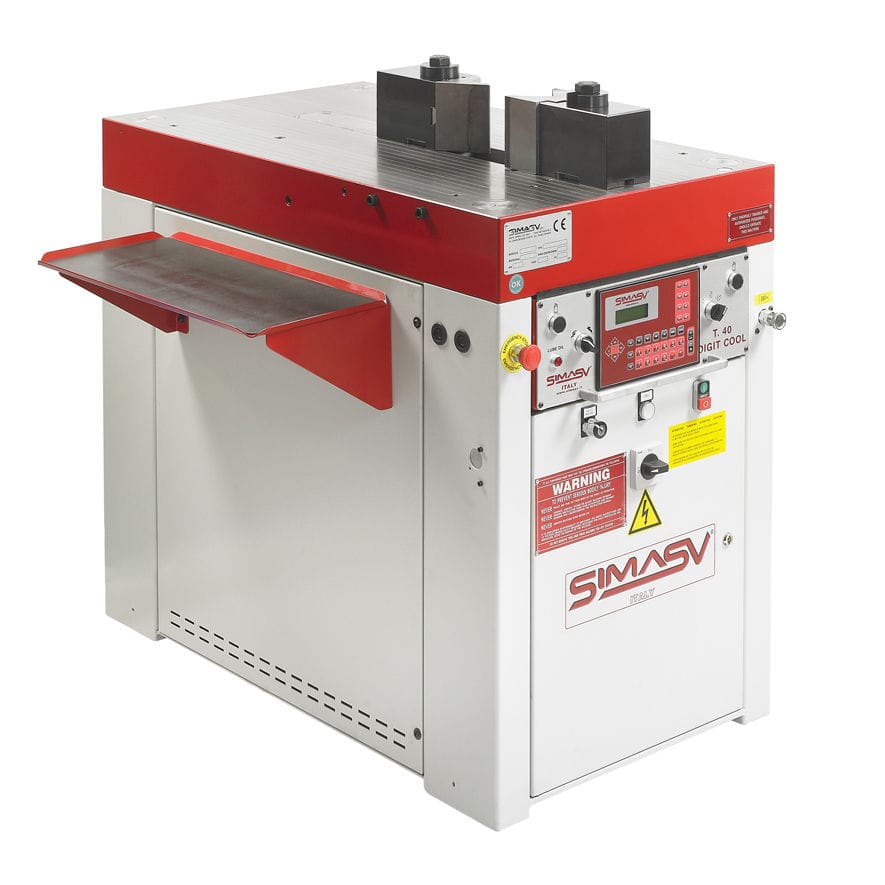

Horizontal CNC press brake
max. 40 t | T40 DIGIT 1 AXIS
S.I.M.A.S.V. SRL
The programming of digitally controlled models is simple and functional and ensured via the electronic CLOCK2 type CN which, allows the operator to programme different work procedures without re-processing the piece. The numerical control is composed as follows:
- displaying on a high luminescence and resolution LCD screen of all working functions with 16x2 led characters
- touch-screen keyboard, complete with 35 keys,,16x2 led characters, full view of both axes "X" (axis stroke - punch) and "Y" (axis stroke side gauge positioner)
- memory of 550 programs in "X" axis and "Y" axis, each of the 2 axis has a program with 15 different lines - that can be repeated 999 times
- BENDING FUNCTION: (with die + punch) programming in DEGREES of the bending angle directly from CN, data setting punch and die material thickness - possibility of setting and adjusting back elastic coefficient to every different angle
- TUB BENDING FUNCTION: programming in DEGREES of the bending angle directly from the CN with the possibility of setting coefficient adjustment elastic-return
- 5 language options
- measurement conversion millimetres / inches
- programs selector: manual, semi-automatic, automatic
- positioning accuracy: ± 0.1 mm
- stroke speed adjustment via flow adjustment valve automatic control from CN
- USB port for downloading programs on an external memory stick for saving and/or input data (optional)
-
