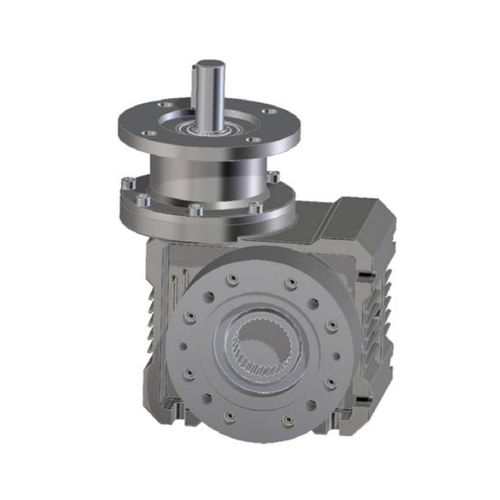

worm gear reducer / orthogonal / precision / compact
2SP78 series SIPOS Aktorik

{{requestButtons}}

Characteristics

  • Type:

    worm

  • Shaft orientation:

    orthogonal

  • Performance:

    precision

  • Other characteristics:

    compact, rugged, for valve actuators

  • Torque:

    Min.: 125 Nm (92.1953 ft.lb)

    Max.: 1,305 Nm (962.5186 ft.lb)

  • Rotational speed:

    Min.: 5 rpm (31.42 rad.min-1)

    Max.: 80 rpm (502.65 rad.min-1)

Description

2SP78.. was developed to operate in conditions where the highest quality of control is an absolute prerequisite.

Key features:

Unsurpassed level of precision: Max. 0.2° tolerance
Continuous duty: Meets Class D requirements of EN 15714-2
Reliable and robust
