Brushless DC motor speed controller
24 - 48 VDC, max. 960 W | BLSD-20
Smart Motor Devices

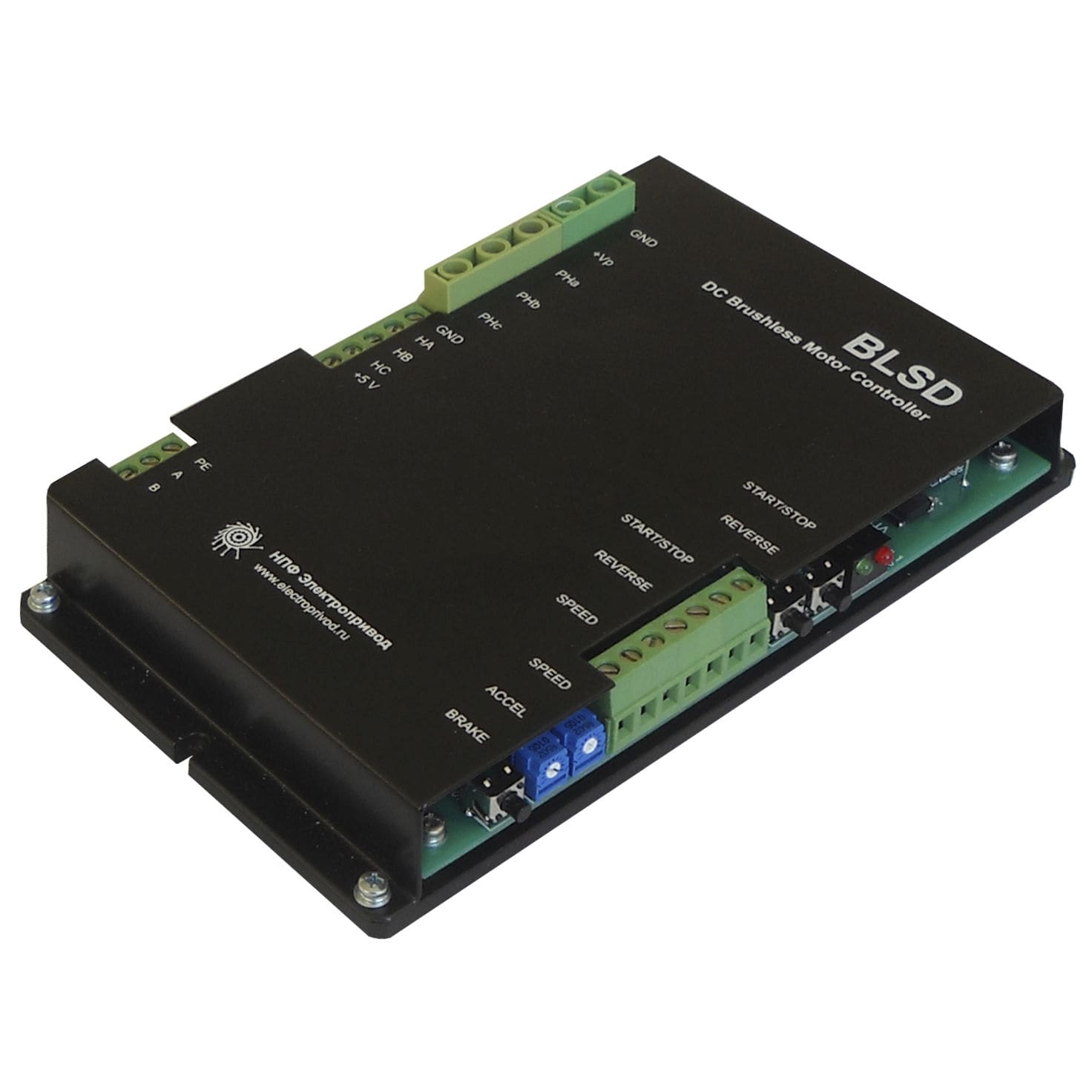

Brushless controller BLSD-20 is electronic device to operate and control brushless synchronous 3-phase dc motors with Hall encoder. Controllers are designed to control speed, direction, active braking, smooth start and stop of brushless motors with current under 20Amp. Communication interface RS-485 is provided.
Speed, acceleration and deceleration time are adjusted by internal potentiometers on the frame of controller. Speed also can be adjusted by analog proportional signal 0-5VDC or external potentiometer.
Direction is changed by pressing the button or by external signal (clean contact).
To start and stop motor buttons or external signals are provided.
Rated voltage: 24-48VDC
Maximum motor current: 20Amp
Maximum motor power: 960W
Commands via RS-485:
start and stop,
set direction,
set speed,
set acceleration
set deceleration,
set current position,
set new communication address.
Controller BLSD has internal digital rates counter. So there is possibility to know current position.
