Parts parts washer ROUNDJET

spraying

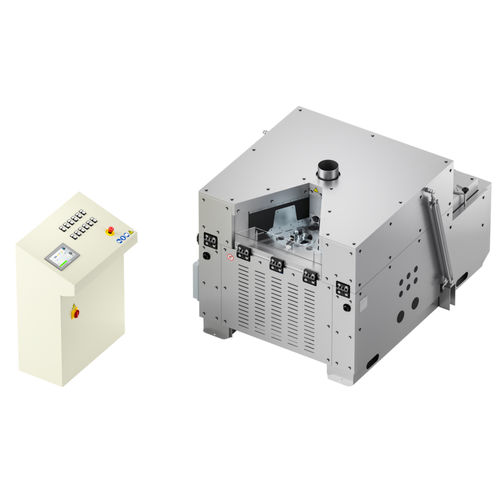

Roundjet is a rotating table parts washer (transfert type) that enables the washing of small size mechanical parts in a very quick time. The loading platform is divided into 6 areas: loading, extraction, washing, pause, blowing and hot drying. By the loading station (the only one “opened”), the table step-by-step rotation enables parts going through all treatment phases up to when parts returned to the initial position for loading operations. It is possible to use the same machine to wash similar parts thanks to the interchangeability of the positioning supports. A PLC management enables numberless customisations thanks to a wide range of accessories. It is notably ideal for operations in robotised isles (positioning precision by +/- 0.5 mm). It can be also realised, on demand, for being used by operators with manual loading and unloading. Roundjet parts washer is a step-by-step washing machine on a similar "rotating table" system. The parts washer consists of: loading/unloading, steam extraction, washing, unloading, compressed air blowing, and hot-air drying. The rotating table is made up of 6 identical sections each of them having a parts holder in stainless steel and in anti-scratching material. Roundjet parts washer allows a single parts type to meet the needs of a single parts position for the washing. However it is possible to wash different parts shapes if the redesigning of the six sections is planned during the project design phase. It is especially suitable for robotic isles with parts loading and unloading directly by an anthropomorphic robots (positioning accuracy by +/- 0.5 mm). It can be also designed for manual loading and unloading operations.
