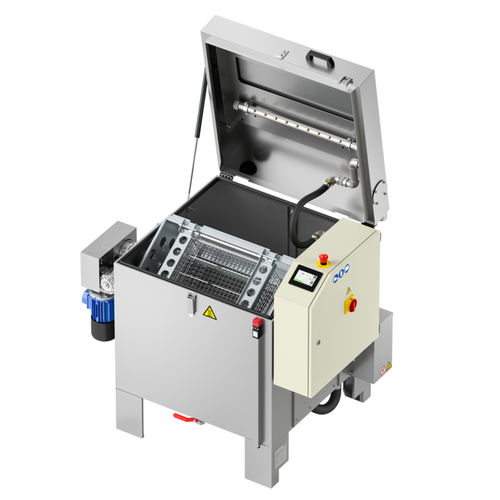

Twister is a machine that performs the washing of parts in continuous rotation along a horizontal axis.
The pieces are placed inside an electrowelded stainless steel mesh box with lid.
It is particularly suitable for washing small or medium sized pieces, such as turning parts, gaskets, etc.
version
LT (heating up to 60° C)
HT (heating up to 80° C)
Controls
PLC with color Touch Screen
Industry 4.0 option
Tank quantity
Unique tank
Areas of application
Mechanical engineering, chip removal, foundries, moulding
Surface treatment, pre-painting, paint stripping
Aeronautical / Space Industry
Electronic
Chemical, Pharmaceutical, Medical, Cosmetic, Food
What is included in each TWISTER
Hatch closure assisted with gas springs and fastening hook
Siemens® electric power parts
4” color touchscreen display for settings and programs
Aisi 304 stainless steel filter in pump intake
Tank border gasket
Structure and sheet metal in contact with liquid in Aisi 304 stainless steel
Minimum level switch
Safety limit switch on cover opening
Stainless steel electric pump with special seals
Weekly programming to start heating and deoiler (if installed)
IP65 electrical system, management via PLC touchscreen (DGT V4)
Heating of the liquid with stainless steel electric heating element
Mechanical rotation of basket via gearmotor
Internal welding bleaching
Intake and delivery pump hose (easy maintenance)
Aisi 304 stainless steel washing pipelines with professional stainless steel flat nozzles
Drain valves for emptying tanks
Manual water filling valve
