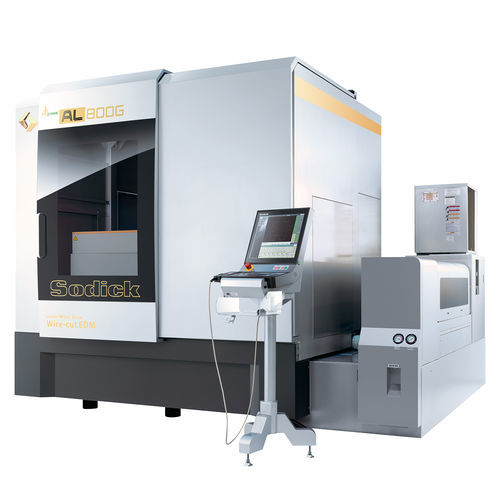

Wire-cut electrical discharge machine AL800G

high-accuracyhigh-speed

Achieving the superlative performance with in-house developed core technologies Advanced Smart Pulse & Advanced Smart Linear Main Features 4-axis linear motor drive Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor. New Power Supply Unit & New Machining Circuit Providing the improved visibility and operability with the latest man-machine interface achieved by the 19" horizontal touch-panel. This machine is standardly equipped with the "barrel-free effect control Ⅱ" which greatly reduces the barrel amount during machining, and "TMP Control Ⅱ" which improves the surface roughness of the second cut and realizes high speed finish machining. Large and Thick Workpiece Machining The AL800G/ALN800G supports a 500mm workpiece thcickness machining standard. It equipped with the automatic vertically sliding door, the "O-shape" work-stand, and ceramics made stand-bases. The high speed automatic wire threading unit (FJ-AWT) and the built-in 20kg wire feeder enables unattended high speed and high precision machining.
