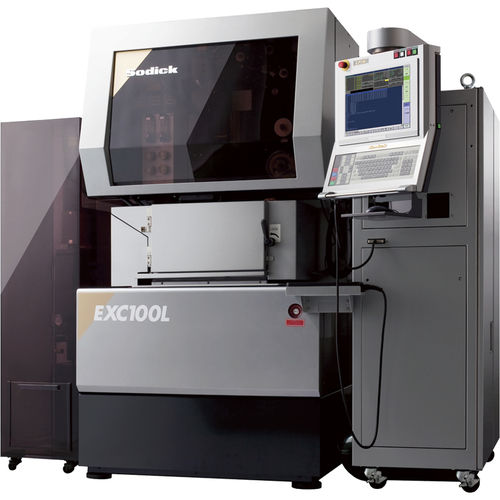

Wire-cut electrical discharge machine EXC100L

precision

Screw-less drive and ceramic air slider ultra-precision wire-cut EDM flagship which realizes the ultimate machining Main Features Screw-less drive The screw-less drive uses a linear motor and a linear scale, realizing excellent positioning accuracy. Because there is no mechanical contact, high response and long term stability and reliability are maintained. By using this drive in combination with a motion controller (SMC) developed by Sodick over many years, maximum performance can be realized. LQW power supply In the LQ power supply, a 3D solid model can be directly imported and used for machining, thus realizing significantly increased machining performance that exceeds the machining know-how of a skilled worker. The ideal machining conditions can be automatically created from a 3D solid model, permitting virtually unmanned operation and a significant reduction of labor. Nano-quality machining This machine employs the world’s first completely contact-less XY orthogonal table which uses our ceramic air sliders and linear motors. In addition, it incorporates a high resolution linear scale, realizing a minimum drive unit of 10 nanometers (0.01µm). A high performance machining fluid cooling unit is standard fitment, maintaining stable super-precision machining.
