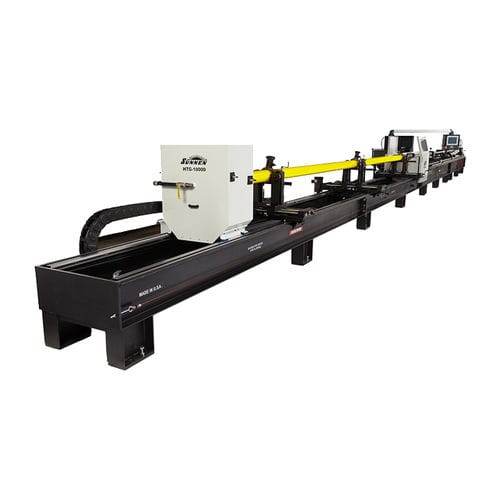

Horizontal honing machine HTG series

CNC

The popular HTG Tube Hone recently received a system update which includes the new Smart-Feed precision tool feed system for optimized performance and increased stock removal rates. The Smart-Feed precision feed system combines the power of hydraulics with the finesse of a technically advanced control that includes servo position and servo force control. This results in more consistent bore size and finish from end-to-end for heavy-duty, long-bore honing applications. MACHINE SPECIFICATIONS Spindle Motor: 29.83 kW (40 Hp) max Stroke Motor: 13.42 kW (18 Hp) max FEATURES + BENEFITS Twice the stock removal rate ... up to 244 in3/hour Twice the I.D. capacity ... up to 24 inches Increased O.D. capacity ... easily handles up to 30-foot tubes (longer lengths optional) A new proportional load control system transfers power where it is needed ... up to 40 Hp to the spindle ADDITIONAL INFORMATION Sunnen's HTG series heavy-duty tube hones are built rugged for the high-production requirements of the oil and gas industry. The HTG series has twice the stock removal rate and double the part capacity of Sunnen's popular GH-210 tube hone. Made in the U.S.A., the HTG series tube hone comes in two standard model sizes -- the HTG-4000 with a 4-meter (13.12 ft) stroke length and the 10-meter (32.81 ft) HTG-10000. Built-to-order machine sizes include 6-,8-,12-, and 14-meter stroke lengths. With more speed, more power and more precision, the HTG series could bring more profits.
