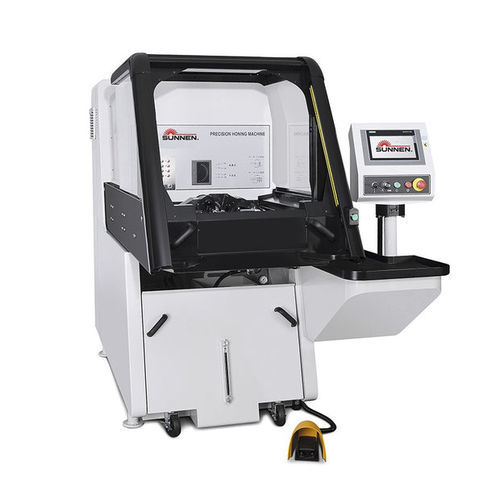

Horizontal honing machine SH-5000

CNCelectricautomatic

The SH-5000 builds on the 21-year heritage of the successful EC and ML series machines. From its designer styling and lack of manual controls to its digital repeatability and touchscreen HMI, the SH-5000 takes honing to the next level of capability. Specs Stroke Length: 6 to 392 mm (0.24 - 15.43 in.) Features + Benefits Digital-Servo Tool Feed: Patent-pending linear hybrid tool feed and cutting pressure control. Automatic Size Control: Standard feature for precision and consistency. True Running Spindle: Equipped with precision bearings and direct collet connection. Increased Feed Travel: 20 mm (0.79 in.) of additional feed travel for an increased diameter range for MMT tools. Electric Foot Pedal: For setup and truing mandrels. Larger Coolant Tank: 70% larger than earlier models, with a capacity of 208 L (55 gallons). Ergonomic Work Area: Generous space for operator comfort. Intuitive Touchscreen: Easy-to-use interface with a large 225 mm (9 in.) display. Additional Information The SH-5000 is the result of a four-year development process with input from around the globe. All aspects of the machine have been analyzed for improvement. Engineered to improve operator productivity, the SH-5000 is suited for medium-to-high volume production. Its advanced features and intuitive design make it a standout in the honing industry.
