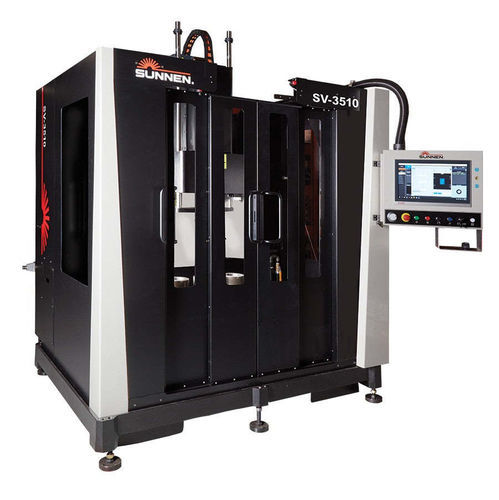

Vertical honing machine SV-3500

1-spindleCNCelectric

Product Details
The Sunnen SV-3500 Series Vertical Honing Machines are ideal for gas and diesel engine block, diesel cylinder liner, mud pump liner and hydraulic valve block large bore applications; and other medium and high production applications. Perfect for all larger diameter medium and high production applications.

Specs

• Ideal for bores 19 mm to 250 mm (.75 in to 10.0 in)
• Easy to use Sunnen2 controls
• Windows®-based PC with industrial color touch screen control panel
• Servo Linear Tool Feed

Models
SV3500 – Heavy Duty Vertical Honing Machine, 300 rpm single fixed column/30 inch stroke/CE/400 V 50 Hz and 460 V 60 Hz (includes guard set)
SV35101 – Heavy Duty Vertical Honing Machine, 300 rpm/Single column/standard stroke/SV2410 Base/X axis column motion/ CE/400/460 V 50/60 Hz with guarding
SV35102 – Heavy Duty Vertical Honing Machine, 600 rpm/Single column/standard stroke/SV2410 Base/X axis column motion/ CE/400/460 V 50/60 Hz with guarding

Features + Benefits

• Servo motors for stroke and spindle maintain constant crosshatch finish throughout the bore, end to end
• Long-life, low-maintenance stainless steel enclosures for a clean working environment and operator safety
• Auto-dwell feature corrects bore straightness automatically ... great for blind bores
• Setup is fast and easy -- all handled from the operator station
• Pick-and-place automation as well as robotic loading are options that can be integrated with the machine control

Additional Information
The SV-3500 series are powerful workhorses that feature the latest in honing technology - including constant crosshatch capability and a linear tool feed system specifically designed for heavy duty tooling that allows for the most precise and fastest control of feed on the market.

Caractéristiques / spécifications techniques

• Product type: Vertical Honing Machine
• Model(s): SV3500, SV35101, SV35102
• Bore diameter range: 19 mm to 250 mm (.75 in to 10.0 in)
• Control: Windows®-based PC with industrial color touch screen
• Tool feed: Servo Linear Tool Feed
• Column: Single fixed or X axis motion
• Stroke: Standard or 30 inch
• Spindle speed: 300 rpm or 600 rpm (depending on model)
• Voltage: 400 V 50 Hz and 460 V 60 Hz
• CE certified, includes guarding
