Vertical honing machine SV-3400

CNCelectricautomatic

Product Details

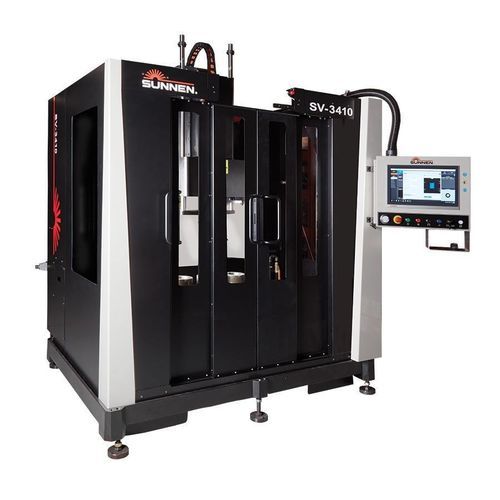

The SV-3400 Series honing machines combine power, precision, durability and technology to make vertical honing more economical and productive than ever before. With a focus on ease of use, this innovative solution incorporates a synchronized servo stroke and spindle to achieve a truly constant cross hatch finish throughout the bore. The tool can dwell in any part of the hole, end-to-end, producing the straightest, roundest bore possible.

Specs

• Diameter Range (ID): 19 - 203 mm (.75 - 8.0 in.)
• Workpiece Weight: 900 kg (2000 lbs.)
• Multiple stroke length models allow tailoring the machine to the application: 582 mm (20.75 in.) to 2285 mm (90.0 in.)
• Spindle Speeds (model dependent): 10 to 600 rpm
• Stroke Rates (model dependent): up to 186 spm

Models

• SV3410 - Vertical Honing Machine, Single column/standard stroke/ 400/460 V 50/60 Hz/CE/servo X axis column motion (includes guard set)
• SV3415 - Vertical Honing Machine, Single column/standard stroke/ 400/460 V 50/60 Hz/CE/4 station index table (includes guard set)
• SV3460 - Vertical Honing Machine, Single fixed column/60 inch stroke/SV2410 base/T-slot table/CE/400/460 V 50/60 Hz (includes guard set)
• SV3490 - Vertical Honing Machine, Single fixed column/60 inch stroke/SV2410 base/T-slot table/CE/400/460 V 50/60 Hz (includes guard set)
• SV3400-2 - Vertical Honing Machine, Two fixed column/guide pots/3 position index table/30 inch stroke

Features + Benefits

• Easy to use flexible Sunnen2 control system ensures quick changeovers and operator training
• Latest in safety technology
• Multiple machine configurations available
• Precision 6.3 kw (8.5 hp) servo spindle delivers superior bore quality
• Rotary feed system and superior tooling choices (GHSS; GHTS; PH; CV/CK; P20/P28; MPS) deliver extremely precise bores
• Optional T-Slot table, index table, and elevated fixture frame allow fixturing versatility
• Heavy duty vertical slide and horizontal slide stroke guide ways ensure superior performance and long, trouble-free life, auto lubrication system is standard for critical components

Additional Information
With its 6.3 kw (8.5 HP) servo spindle motor and powerful 8.0 kw (10.8 hp) servo stroking motor, the SV-3400 Series can handle almost any job. It is perfect for mid- to high-volume production in large bores 19 mm to 203 mm (.75 in. to 8.0 in.) and is well suited for a wide range of applications.

Caractéristiques / Spécifications techniques

• Diameter Range (ID): 19 - 203 mm (.75 - 8.0 in.)
• Workpiece Weight: 900 kg (2000 lbs.)
• Stroke Length: 582 mm (20.75 in.) to 2285 mm (90.0 in.)
• Spindle Speeds: 10 to 600 rpm (model dependent)
• Stroke Rates: up to 186 spm (model dependent)
• Servo spindle motor: 6.3 kw (8.5 HP)
• Servo stroking motor: 8.0 kw (10.8 HP)
