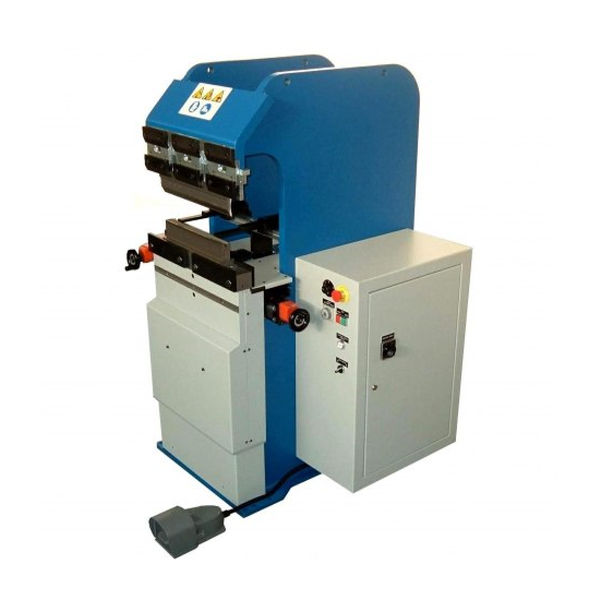

Hydraulic press brake
max. 16 t | SCM 16.5
TEDA srl
EASY TO USE
2-Manual axis
* Y Axis cylinder stroke with position numerical reader
* X Axis back gauge horizontal movement, with position numerical reader
R Axis (vertical movement) is manually controlled
FAST
Extremely fast bending cycle thanks to the elimination of all the deceleration times, speed changes, etc.. High time saving during the bending cycle resulting in great productivity
SAFE
Its small dimension allows to remove the lateral protection: the whole press brake length is constantly within the operator visual field.
EFFICIENT
No lateral obstacle: even the most complicated piece can be easily handled and slided out laterally.
UNIQUE
The innovative shape of the ram allows to manufacture U-profiles with no depth limitation.
COMPACT
It is so solid that it does not need foundations.
Structural stiffness guaranteed and deflection reduced to the minimum.
