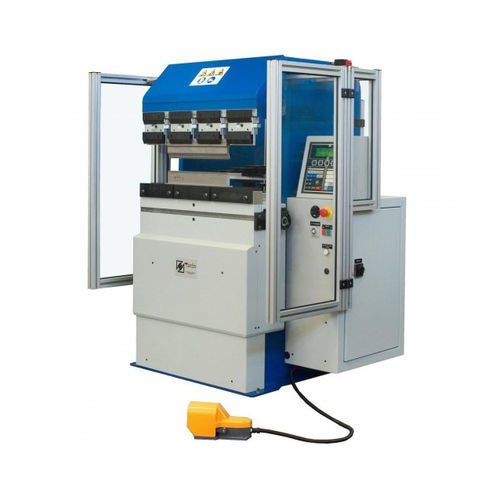

Hydraulic press brake SCT 18.8

2-axiscompactautomatic

Easy to use Two axes (X, Y) controlled and managed by CNT STEP AUTOMATION RK12+ which makes it suitable for exploiting the advantages of the industry 4.0 decree, to combine high productivity with extreme ease of use: Y Axis cylinder stroke with bending angle settings in degrees X Axis back gauge with removable fingers equipped with vernier R Axis (vertical movement) manually controlled Fast Extremely fast bending cycle thanks to the elimination of all slowdown times, speed changes, etc … High time savings on the bending cycle for exceptional productivity. Safe Its small dimension allows to remove any lateral protection: the whole press brake width is constantly within the operator visual field. Efficient No lateral obstacle: even the most complicated piece can be easily handled and slided out laterally. Unique The innovative ram shape allows to manufacture U-profiles without depth limitation. Compact Its solid structure does not need foundations. Structural stiffness guaranteed. Deflection reduced to the minimum. tandard equipment Y = cylinder stroke with bending angle settings in degrees X = back gauge horizontal movement 11” capacitive Touch screen 4 2.0 USB ports and one RJ45 Ethernet port Fast editor to create 2D parts Team viewer for remote support Machine report
