Pt100 temperature sensor / RTD / miniature / for freeze dryers
FD100 Thermal Detection

{{requestButtons}}

Characteristics

  • Technology:

    Pt100, RTD

  • Other characteristics:

    miniature

  • Applications:

    for freeze dryers

  • Temperature:

    Min.: -65 °C (-85 °F)

    Max.: 150 °C (302 °F)

Description

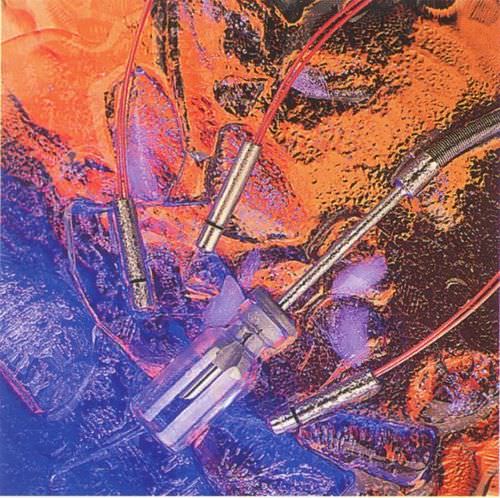

The Freeze Dryer probe is designed to measure the temperature of very small volumes of liquid product, for example as found in lyophilizers.

The probe is designed so the PT100 sensor is in close proximity to the inside face of the probe tip to increase the measurement response time, and the probe tip is thermally insulated from the main stem to reduce thermal conductivity.

The sensor sheath are in parts and of grade 316L (1.4404) made of stainless steel.
