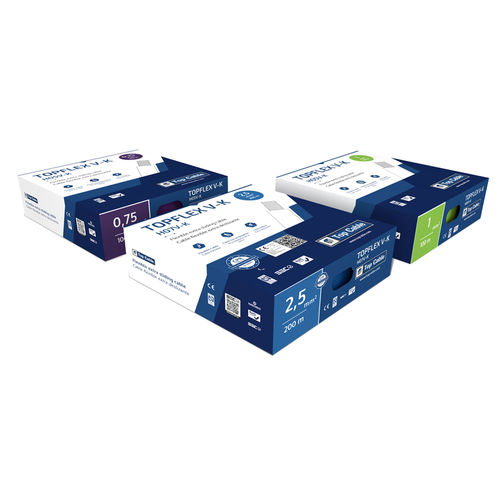

Insulated electrical wire TOPFLEX V-K H05V-K & H07V-K

copperflexible

TOPFLEX V-K H05V-K and H07V-K cable has been specially designed for installations that require a flexible cable due to the complex nature of their layout. This cable is specially suitable for domestic wiring. It may also be used for equipment wiring, distributors, cabinets and lighting. It is also recommended for installation under false ceilings. Cables with cross section up to 1 mm2 are especially suited for signalling and monitoring installations. TOPFLEX V-K H05V-K and H07V-K cable performance Electrical performance LOW VOLTAGE 300/500 V Standard EN 50525-2-11 / IEC 60227-5 Approvals CE SEC HAR AENOR SASO RoHS Construction Product Regulation Eca Thermal performance Maximum service temperature: 60ºC. Maximum short-circuit temperature: 150ºC (max. 5 s). Minimum service temperature: 5ºC. Fire performance Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1. Reduced emission of halogens. Chlorine <15%. Mechanical performance Minimum bending radius: 3 x cable Ø (Ø cable 12 mm2). Impact resistance: AG2 Medium severity. Chemical performance Chemical & Oil resistance: Good. Water performance Water resistance: AD5 Jets. Other Meter by meter marking. Installation conditions Open Air. In conduit. Applications Mobile use. Domestic use. Domestic appliances. Temporary site installations. Packaging Available in rolls (lengths of 50 and 100 m) and drums. TOPFLEX V-K H05V-K and H07V-K cable design Conductor Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
