Power amplifier 601C

high-voltageDCprecision

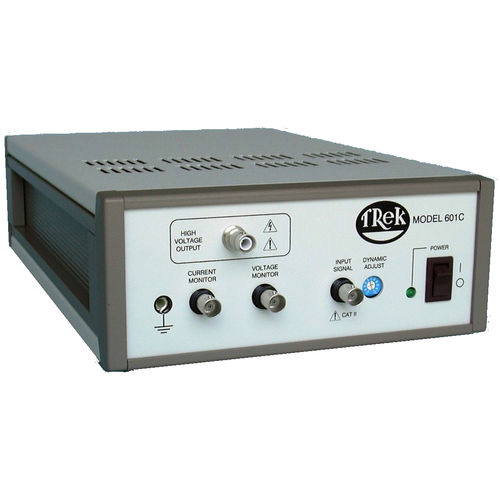

The Model 601C is a DC-stable, high-voltage power amplifier designed to provide precise control of output voltages. It features up to two independent amplifier channels in one enclosure and an all solid-state design for high slew rate, wide bandwidth and low noise operation. The four-quadrant, active output design of the Model 601C sinks or sources current into reactive or resistive loads. These features are essential for achieving the accurate output response and high slew rates demanded by reactive loads. Key Specifications Output Voltage: 0 to ±500 V, 0 to -1 kV, or 0 to +1 kV DC or peak AC Output Current: 0 to ±10 mA DC or 0 to ±20 mA peak AC Slew Rate: Greater than 50 V/μs Large Signal Bandwidth: DC to greater than 30 kHz (1% Distortion) DC Voltage Gain: 100 V/V (a gain of 50 V/V is available for the ±500 V range only) Typical Applications Include Drive piezoelectric actuators Modulate electrooptics Electrostatically control ion beams Automated or computer controlled systems requiring remote turn ON/OFF of high voltage Features and Benefits DC accuracy is better than 0.1% of full scale Remote high-voltage ON-OFF Precision voltage and current monitors provide low-voltage representations of the high-voltage output and load current for monitoring purposes or for use as feedback signals in a closed-loop system CE compliant for assured reliability Operation as a noninverting or inverting amplifier with a fixed gain
