Voltage: 1 V
Power: 10 W
Frequency: 350 MHz
... 50 Ω input and output impedance 3 ns overload recovery The Model SR445A 350 MHz Preamplifier contains four wide-bandwidth, DC-coupled amplifiers, each with a gain of 5. The four channels may be used ...
Voltage: 3 V - 5 V
Frequency: 130 MHz - 3,800 MHz

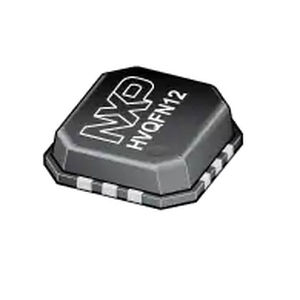

Energy efficiency for future designs. Our linear amplifier portfolio supports a wide range of applications: TD-SCDMA, W-CDMA, and LTE femtocell BTS for consumer/enterprise; SMART grid; mesh networking ...
Voltage: 208 V - 415 V
Current: 1.5, 13, 3.5 A
Power: 10,000, 5,000, 3,000 W
The R&S®BBL200 broadband amplifiers are ideal for applications requiring high RF power. The R&S®BBL200 broadband amplifiers are linear Class A amplifiers and generate 3 kW, 5 kW and 10 ...
Voltage: 15 V
Current: 56, 31, 29 mA
Frequency: 5 MHz - 1,000 MHz
... noise, 3.3 dB typ. •high IP3, +32 dBm typ. •hermetic, TO-8 can Applications •military, hi-rel applications •small signal amplifier •VHF/UHF
Voltage: 5 V
Current: 131, 126, 120 mA
Frequency: 5,000 MHz - 22,000 MHz
The Big Deal •Surface Mount Amplifier up to 20 GHz •Integrated matching, DC Blocks and bias circuits •High Reverse Isolation Product Overview The Mini-Circuits AVA is a surface mount, microwave amplifier ...
Voltage: 5, 4 V
Current: 20 mA - 158 mA
Frequency: 10 MHz - 18,000 MHz
... excellent reliability. The MMIC amplifier is bonded to a multilayer integrated LTCC substrate, and then hermetically sealed under a controlled nitrogen atmosphere with gold-plated covers and eutectic AuSn solder. These ...
Voltage: 300 V
Current: 150 mA
... half-rack size, bench-top power amplifier designed for signal amplification. With unprecedented signal purity, Model 9100 amplifies signals from DC to over 500kHz. The unit has a fixed gain of x15 however the same amplifier ...
Power: 1 W - 2 W
... This comprehensive wide band high gain RF amp product offering provides a choice of gain levels, frequency ranges and power outputs that meet many requirements. Pasternack is commitmented to excellence ...
Current: 1, 2 A
Power: 20 W
Frequency: 100 kHz - 22,000 kHz
... Bandwidth（-3dB）:100kHz~22MHz Rated output power: 20W P1dB output power:40W Power gain: 40dB ATA-1222A is an RF power amplifier. The rated output power is 20W, P1dB output power is 40W. The gain is numerically adjustable, ...
Voltage: 35, 70 V
Current: 2 A
Power: 70 W
ATA-1372A is an ideal single-channel wide band amplifier that can amplify the AC and DC signals.matching with the mainstream signal generator, realize perfect signal amplification. Input The ...
Current: 0 mA - 0 mA
... Newtons4th Ltd. is a transimpedance amplifier (TIA) module which are the compatible unit for systems having a superior impedance designed for analyzing the system by measuring the current flow applying all the test and ...
Voltage: 12 V
Current: 1 A
The Newtons 4th Ltd LPA range of power amplifiers are used in various industry and laboratory operations because they are extremely strong and reliable. They were originally designed for the use with PSM range frequency ...
Voltage: 8, 3.6 V
Current: 75, 150 mA
LPA400 is a wideband high volatge amplifier for an industrial or laboratory environment. The LPA range of power amplifiers from Newtons4th Ltd are robust and reliable for use in a variety of industrial ...
Voltage: 4.5 V - 5.5 V
Current: 110, 210 mA
Frequency: 2 MHz - 6,000 MHz
... wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz, they are ideal to boost the signals picked up by our EMC near field probes. ...
Voltage: 13.5 V
Current: 11, 11.5, 15, 19, 21 A
Power: 60, 95, 25, 160, 100 W
Solid-state wide band amplifier ,vith antenna preamplifier usable in AM-FM-CW-SS8 Mobile and base applications for expanding the output power of the H.F. low power transceiver 3- f5W ...
Voltage: 100 mV - 15,000 mV
Frequency: 10 Hz - 100,000 Hz
... single phase analogue lock-in amplifier. It is suitable for making amplitude and phase measurements. • Single phase instrument • Differential or single-ended input • Gain settings from 3 µV to 1 V • High performance ...
Voltage: 0 kV - 2 kV
Current: 0 mA - 80 mA
Power: 40 W
... cost-effective high-voltage amplifiers which deliver reliable, robust performance in piezoelectric, electro-optic, MEMS and many other applications. Industries that will benefit from the advancements enabled by these ...
Voltage: 1.7 V
Current: 600 mA

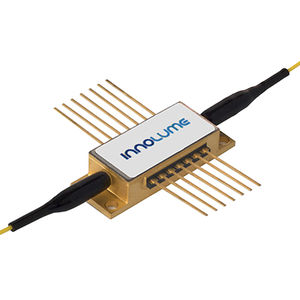

Semiconductor optical amplifiers (booster optical amplifiers) are amplifiers which use a semiconductor to provide the gain medium. They have a similar structure to Fabry–Perot laser diodes ...

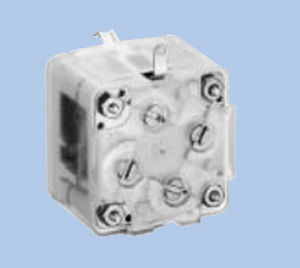

It is a trackingless POLYVARICON for exclusive MW use. It is wide-band use as the standard 20 mm product. It is suitable for use in practical radios, since it is a model that has pursued high cost-performance ratio.
Voltage: 0.5 V - 10 V
Frequency: 10 Hz - 100,000 Hz
... circuits • - Built-in with four-pole Bessel low-pass filter with cutoff frequencies of 10 Hz, 30 Hz,50 Hz ~100k Hz and wide-band (14 position) • - Others filter type and cut-off frequency is possible • ...
Voltage: 0.5 mV - 10 mV
Frequency: 50,000 Hz

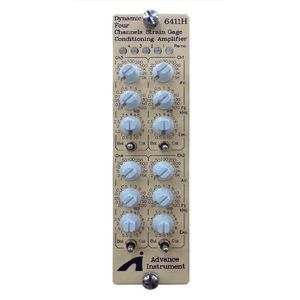

... Differential Strain Gauge Voltage Amplifier , For Full Bridge , +/-5 VDC , +/-10 VDC , Up to 50 kHz Bandwidth , Screw Terminal Connectors , Red Powder Coated , Integrated DIN Clip Description The IAA300 Differential ...
