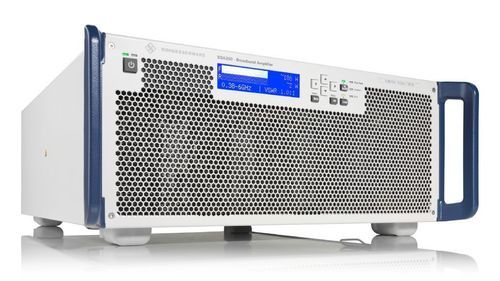

Signal amplifier R&S®BBA300powerRFmicrowave
Add to favorites
Compare this product
Characteristics
- Type
- signal, RF, microwave, power
- Secondary function
- instrumentation
- Other characteristics
- wide-band, high-power, tunable
- Power
Max.: 1,000 W
Min.: 15 W
- Frequency
Max.: 18,000 MHz
Min.: 380 MHz
Description
Overview
The R&S®BBA300 is a solid‑state ultra‑wideband broadband amplifier family for critical RF test environments (EMC, OTA coexistence, product validation, RF component testing). Models cover continuous frequency ranges from 380 MHz to 18 GHz and scalable P1dB output power up to 1000 W depending on configuration. The platform is modular and configurable as single, dual or multiband systems.
Key facts
Features & benefits
Excellent RF performance
Broadband amplification from 380 MHz to 18 GHz with output options up to 1000 W. Covers EMC bands and common wireless standards (GSM, LTE, 5G, WLAN, Bluetooth®, Zigbee). Supports narrowband CW and broadband OFDM. Typical noise power density down to −110 dBm/Hz and harmonic levels around −25 dBc ensure low adjacent channel leakage and good transfer characteristics.
Tunable amplifier
Software option R&S®BBA300-PK1 enables tuning the operating point between class A and class AB to optimize linearity, pulse reproduction or maximum RF output power and to increase mismatch tolerance.
High availability
RF design and protection concepts enable reliable continuous operation under mismatched loads (tolerance up to VSWR 6:1). Periodic bias current adjustment compensates component aging/drift to increase lifetime and reduce downtime.
Flexible, configurable
Compact modular 19" plug‑in units allow scalable rack integration. Frequency range and power can be configured and extended; switching options enable combining amplifiers and grouping bands into multiband systems.
Smart control
Modern software platform with role‑based GUI. Standard Ethernet interface with SCPI remote‑control; SNMP optional. Option keys enable frequency extension, high power mode, operation‑point adjustment and other licensed functions.
Available models (selection)
R&S®BBA300-CDE15 | 380 MHz - 6 GHz | 15 W
R&S®BBA300-CDE25 | 380 MHz - 6 GHz | 25 W
R&S®BBA300-CDE50 | 380 MHz - 6 GHz | 50 W
R&S®BBA300-CDE90 | 380 MHz - 6 GHz | 90 W
R&S®BBA300-CDE180 | 380 MHz - 6 GHz | 180 W
R&S®BBA300-CDE300 | 380 MHz - 6 GHz | 300 W
R&S®BBA300-DE15 | 1 GHz - 6 GHz | 15 W
R&S®BBA300-DE25 | 1 GHz - 6 GHz | 25 W
R&S®BBA300-DE50 | 1 GHz - 6 GHz | 50 W
R&S®BBA300-DE90 | 1 GHz - 6 GHz | 90 W
R&S®BBA300-DE180 | 1 GHz - 6 GHz | 180 W
R&S®BBA300-DE300 | 1 GHz - 6 GHz | 300 W
R&S®BBA300-DE500 | 1 GHz - 6 GHz | 500 W
R&S®BBA300-DE1000 | 1 GHz - 6 GHz | 1000 W
R&S®BBA300-F30 | 6 GHz - 13 GHz | 30 W
R&S®BBA300-F50 | 6 GHz - 13 GHz | 50 W
R&S®BBA300-F90 | 6 GHz - 13 GHz | 90 W
R&S®BBA300-F180 | 6 GHz - 13 GHz | 180 W
R&S®BBA300-F300 | 6 GHz - 13 GHz | 300 W
R&S®BBA300-FG30 | 6 GHz - 18 GHz | 30 W
R&S®BBA300-FG50 | 6 GHz - 18 GHz | 50 W
R&S®BBA300-FG90 | 6 GHz - 18 GHz | 90 W
R&S®BBA300-FG180 | 6 GHz - 18 GHz | 180 W
R&S®BBA300-FG300 | 6 GHz - 18 GHz | 300 W
Applications
Technical specifications
The R&S®BBA300 is a solid‑state ultra‑wideband broadband amplifier family for critical RF test environments (EMC, OTA coexistence, product validation, RF component testing). Models cover continuous frequency ranges from 380 MHz to 18 GHz and scalable P1dB output power up to 1000 W depending on configuration. The platform is modular and configurable as single, dual or multiband systems.
Key facts
- Continuous RF sweeps across ultra‑broad frequency ranges up to 18 GHz
- RF output power (P1dB) up to 1000 W (model dependent)
- Supports amplitude, frequency, phase, pulse and complex OFDM modulation
- High tolerance to mismatch (operation up to VSWR 6:1)
- Flexible, scalable configurations with extendable frequency and power
Features & benefits
Excellent RF performance
Broadband amplification from 380 MHz to 18 GHz with output options up to 1000 W. Covers EMC bands and common wireless standards (GSM, LTE, 5G, WLAN, Bluetooth®, Zigbee). Supports narrowband CW and broadband OFDM. Typical noise power density down to −110 dBm/Hz and harmonic levels around −25 dBc ensure low adjacent channel leakage and good transfer characteristics.
Tunable amplifier
Software option R&S®BBA300-PK1 enables tuning the operating point between class A and class AB to optimize linearity, pulse reproduction or maximum RF output power and to increase mismatch tolerance.
High availability
RF design and protection concepts enable reliable continuous operation under mismatched loads (tolerance up to VSWR 6:1). Periodic bias current adjustment compensates component aging/drift to increase lifetime and reduce downtime.
Flexible, configurable
Compact modular 19" plug‑in units allow scalable rack integration. Frequency range and power can be configured and extended; switching options enable combining amplifiers and grouping bands into multiband systems.
Smart control
Modern software platform with role‑based GUI. Standard Ethernet interface with SCPI remote‑control; SNMP optional. Option keys enable frequency extension, high power mode, operation‑point adjustment and other licensed functions.
Available models (selection)
R&S®BBA300-CDE15 | 380 MHz - 6 GHz | 15 W
R&S®BBA300-CDE25 | 380 MHz - 6 GHz | 25 W
R&S®BBA300-CDE50 | 380 MHz - 6 GHz | 50 W
R&S®BBA300-CDE90 | 380 MHz - 6 GHz | 90 W
R&S®BBA300-CDE180 | 380 MHz - 6 GHz | 180 W
R&S®BBA300-CDE300 | 380 MHz - 6 GHz | 300 W
R&S®BBA300-DE15 | 1 GHz - 6 GHz | 15 W
R&S®BBA300-DE25 | 1 GHz - 6 GHz | 25 W
R&S®BBA300-DE50 | 1 GHz - 6 GHz | 50 W
R&S®BBA300-DE90 | 1 GHz - 6 GHz | 90 W
R&S®BBA300-DE180 | 1 GHz - 6 GHz | 180 W
R&S®BBA300-DE300 | 1 GHz - 6 GHz | 300 W
R&S®BBA300-DE500 | 1 GHz - 6 GHz | 500 W
R&S®BBA300-DE1000 | 1 GHz - 6 GHz | 1000 W
R&S®BBA300-F30 | 6 GHz - 13 GHz | 30 W
R&S®BBA300-F50 | 6 GHz - 13 GHz | 50 W
R&S®BBA300-F90 | 6 GHz - 13 GHz | 90 W
R&S®BBA300-F180 | 6 GHz - 13 GHz | 180 W
R&S®BBA300-F300 | 6 GHz - 13 GHz | 300 W
R&S®BBA300-FG30 | 6 GHz - 18 GHz | 30 W
R&S®BBA300-FG50 | 6 GHz - 18 GHz | 50 W
R&S®BBA300-FG90 | 6 GHz - 18 GHz | 90 W
R&S®BBA300-FG180 | 6 GHz - 18 GHz | 180 W
R&S®BBA300-FG300 | 6 GHz - 18 GHz | 300 W
Applications
- EMC and regulatory testing
- OTA coexistence testing and chamber tests
- Product validation and production test integration
- RF component and device testing, R&D and test labs
Technical specifications
- Frequency range: 380 MHz to 18 GHz (model/configuration dependent)
- RF output power (P1dB): model dependent, up to 1000 W
- Noise power density: down to −110 dBm/Hz (typical)
- Harmonic characteristics: typically around −25 dBc
- Supported modulation modes: amplitude, frequency, phase, pulse, complex OFDM
- Mismatch tolerance: full RF power operation up to VSWR 6:1
- Control interfaces: Ethernet (SCPI); SNMP optional; GUI with role‑based access
- Modularity: compact 19" plug‑in units; scalable single/dual/multiband systems
- Protection: smart protection concepts, periodic bias current adjustment for aging compensation
- Software options: tuning/operation‑point adjustment (R&S®BBA300-PK1) and other licensed features
