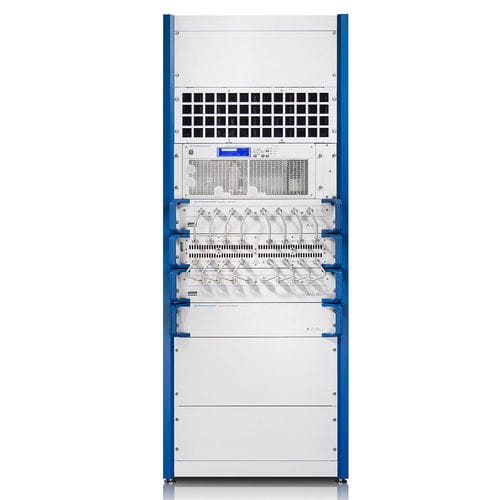

Power amplifier R&S®BBL200

RFlinearcompact

The R&S®BBL200 broadband amplifiers are ideal for applications requiring high RF power. The R&S®BBL200 broadband amplifiers are linear Class A amplifiers and generate 3 kW, 5 kW and 10 kW of power in a frequency range from 9 kHz to 250 MHz. They are liquid-cooled, solidstate, highly rugged, quiet and efficient. Precise monitoring of all runtime parameters ensures maximum robustness and reliability. The amplifiers are designed for continuous operation and deliver constant power even under mismatch conditions. Key facts Frequency range between 9 kHz and 250 MHz Output power of 3000 W, 5000 W or 10000 W at 1 dB compression point 100 % mismatch tolerance Suitable for amplitude, frequency, phase, pulse and OFDM modulation Liquid-cooled, compact and quiet Features & benefits Broadband amplification Sophisticated RF design The use of state-of-the-art design and simulation programs during development, the use of power semiconductors from internationally leading manufacturers and Rohde & Schwarz engineers' decades of experience in developing amplifiers produce the most advanced amplifier design currently available. Efficiency and ruggedness ensure smooth operation. Lean firmware with effective monitoring and protection mechanisms provides operational safety. 100% mismatch tolerance Reliable with high availability The R&S®BBL200 broadband amplifiers are highly tolerant to mismatch at the RF output and are excellently suited for EMC applications with poorly matched antennas or for DUT measurements with an input impedance that deviates significantly from 50 Ω.
