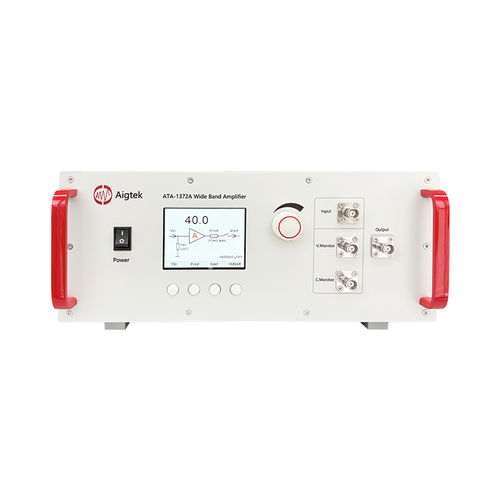

Signal amplifier ATA-1372A

voltageinstrumentationdigital

Product Overview • The ATA-1372A is a constant voltage output wide band amplifier with a bandwidth of DC~3 MHz, a maximum output voltage of 70 Vp-p, and a maximum output power of 70 Wp. • This product features four-quadrant output characteristics, capable of both sourcing and sinking current, making it suitable for driving various types of loads.. 1.2 Product Features • High Bandwidth and High Current Output This product has a bandwidth of DC~3 MHz, a maximum output voltage of 70 Vp-p, a maximum output current of 2 Ap, and a maximum power of 70 Wp. • High-Speed Signal Response With a slew rate of ≥467 V/μs, the product provides high signal conversion rates and excellent step response. • Digital Gain Control The output voltage gain is digitally adjustable, ranging from 0 to 40 in 0.1 step/1 step. • Protection Function The product includes output Over Current Protection and Over Temperature Protection. • Output Monitoring Function Equipped with voltage and current monitoring ports, the product allows direct connection to an oscilloscope for monitoring the amplifier's output voltage and current. • Program Control Function The parameters displayed on the LCD screen can be configured using the front panel buttons or external program control. Application Scenarios • Piezoelectric ceramic drive • Ultrasonic transducer drive • Medical ultrasound • Electro-optic modulation • Semiconductor device testing • Dielectrophoresis • Wireless power transmission • Focused ultrasound
