High-voltage amplifier ATA-2048

signalvoltageinstrumentation

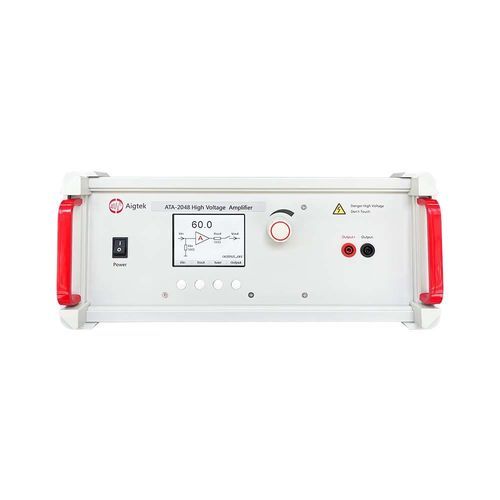

ATA-2048 High Voltage Amplifier
Maximum Output Voltage: 400 Vp-p (±200 Vp)
Bandwidth (-3dB): DC~1MHz
Maximum Output Current: 80mAp
10mV/V Voltage Monitoring
10V/A Current Monitoring
INTRODUCTION
• The ATA-2048 is a constant high voltage output amplifier with a bandwidth of DC~1MHz, amaximum output voltage of 400 Vp-p, and a maximum output power of 16 Wp
• This product features four-quadrant output characteristics, capable of both sourcing and sinking currentmaking it suitable for driving various types of loads
Product Features
• High Bandwidth, High Current, High Power OutputThe product has a bandwidth ofC to 1MHz, a maximum output voltage of 400Vp-p, a maximumoutput current of 80 mAp, and a maximum power of 16 Wp.
• DC Bias Adjustment
The product includes a built-imn DC bias adjustment feature. The DC bias voltage can be set directhfrom the front panel and can be superimposed with the AC signal from the signal generator for outputIt supports fine-tuning with 0.1 V step/1 V step adjustments, making it suitable for testing load-end DCpower variations.
• Digital Gain Control
The output voltage gain is digitally adjustable, allowing fine-tuning from 0 to 60 times with 0.1 step/1step increments.
• Protection Function
The product features overcurrent protection to safeguard the output
• Output Monitoring Function
Equipped with voltage and current monitoring ports, this product can be directly connected to anoscilloscope for monitorig the output voltage and current.
• Program Control Function
The parameters displayed on the LOD screen can be configured using the front panel buttons orexternal program control.
Application Scenarios
• Piezoelectric ceramic drive
• Ultrasonic transducer drive
• Medical ultrasound
• Electro-optic modulation
• Semiconductor device testing
• Dielectrophoresis
• Wireless power transmission
• Focused ultrasound

Features and Benefits:
Four-quadrant output for driving capacitive loads
Low output noise for ultra-accurate outputs
RoHS compliant
CE compliant
Digitally adjustable gain
Output DC offset adjustment
Master-slave
