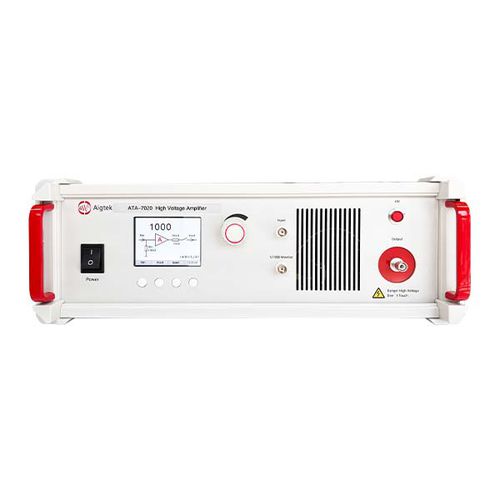

High-voltage amplifier ATA-7020

signalvoltagefor photoelectric sensors

The ATA-7020 is an ideal high voltage amplifier capable of amplifying both AC and DC signals.It provides single-ended output up to 4kVp-p (±2kVp) and can drive high-voltage loads. The voltage gain is digitally adjustable, and frequently used settings can be saved with a single click, offering convenient and straightforward operation. LCD PANEL DISPLAY The LCD panel display dynamically shows the device status and parameters, offering a clear and intuitive interface. Input Input via a BNC connector. Voltage Gain The voltage gain is digitally adjustable from x0 to x1000. Combined with the gain display on the LCD panel, the voltage can be quickly and precisely adjusted as needed. Output Output via an SHV RF connector, with a maximum output voltage of 4kVp-p (±2kVp) and a maximum output current of 30mAp. Monitor 1/1000 Monitor: This port voltage is 1/1000 of the output port voltage. The monitoring port uses a BNC connector and can be directly connected to an oscilloscope for real-time monitoring of the output voltage.
