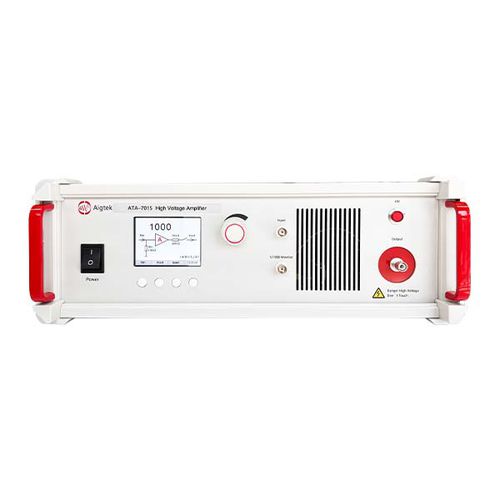

High-voltage amplifier ATA-7015

signalpowercurrent

Product Overview
• ATA-7015 is a constant high voltage output amplifier with a bandwidth ofDC~80kHz, a maximumoutput voltage of 3kVp-p, and a maximum output power of 60Wp.
• This product features four-guadrant output characteristics, capable of both sourcing and sinking currentmaking it suitable for driving various types of loads.
Product Features
• High Output Voltage
The product has a bandwidthofDC-80kHz, a maximum output voltage of 3kVp-p, a maximum output current of 40mAp, and a maximum power of 60Wp.
• Digital Gain Control
The output voltage gain is digitally adjustable, ranging from 0 to 1000x in 1 step/10 steps
• Protection Function
The product features overcurrent protection to safeguard the output.
• Output Monitoring Function
Equipped with voltage monitoring ports, this product can be directly connected to an oscilloscope formonitoring the output voltage.
• Program Control Function
The parameters displayed on the LOD screen can be configured using the front panel buttons or
external program control.
Application Scenarios
• Material polarization
• Dielectric elastomers
• Plasma
• Electrostatic deflection
• Electrohydrodynamic printing
• High-voltage cable testing
• Electrophotography
• Laser modulation
ATA-7000 Series High-Voltage Amplifier Applications: Dielectric elastomer testing, EHD electrohydrodynamic printing, ferroelectric testing, plasma testing, 3D printing, material polarization, electrospinning, microfluidics.

Other applications: Soft robotics, electroactive polymers, piezoelectric drive and control, laser modulation, semiconductor research, electrostatic deflection, electrorheological fluids, AC/DC biasing, particle accelerators, mass spectrometers, material characterization, DBD plasma actuators, atmospheric-pressure plasma, corona discharge, dielectric breakdown testing, ion beam deflection, electron beam deflection, electrophoresis, dielectrophoresis, ion engines, particle accelerators, material characterization, electrostatic actuators, electrostatic spraying, electrostatic coating, solar panel (photovoltaic cell) testing, electro-optic modulation, electrophotography, corona generators, electrostatic chucks, electrostatic deflection of charged particle beams, etc.
