High-voltage amplifier ATA-4315

powercurrentvoltage

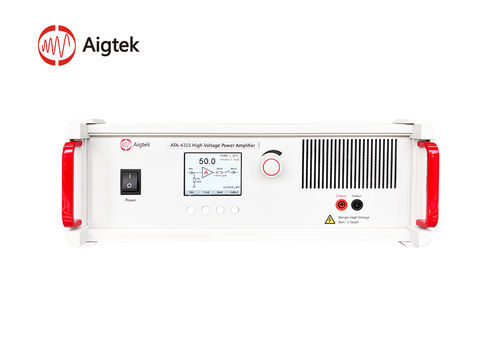

ATA-4315 High Voltage Power Amplifier • Maximum Output Voltage: 150Vp-p (±75 Vp) • Maximum Output Current: 1.41Ap • Bandwidth (-3dB): DC~3MHz • DC Bias Voltage: ±75V • Slew Rate: ≥1000V/μs INTRODUCTION • The ATA-4315 is an ideal single-channel high-voltage power amplifier capable of amplifying both AC and DC signals. The device delivers a maximum output voltage of 150Vp-p (±75Vp) and a maximum output power of 105 Wp, making it suitable for driving high-voltage power loads. The digitally adjustable voltage gain allows precise tuning, with one-click saving of common settings, offering a simple and user-friendly operation. It is compatible with mainstream signal generators for seamless signal amplification. LCD PANEL DISPLAY • The LCD panel display dynamically shows the device status and parameters, offering a clear and intuitive interface. VOLTAGE GAIN • The voltage gain is digitally adjustable from x0 to x50, with two modes: coarse adjustment (1 step) and fine adjustment (0.1 step). Combined with the LCD panel display, it enables quick and precise adjustment to the desired voltage value. INPUT • The input uses a BNC interface with selectable impedance of 50Ω or 1kΩ, perfectly matching both high and low impedance signal sources. OUTPUT • The output uses a BNC interface with a maximum output voltage of 150 Vp-p (±75 Vp) and a maximum output current of 1.41 Ap. The output cable is matched with BNC radio frequency coaxial cables to reduce signal attenuation during high-frequency operation. Applications • Nondestructive Testing (NDT) • Soft Magnetic Material Testing • Transformer Testing • Various Semiconductor Testing
