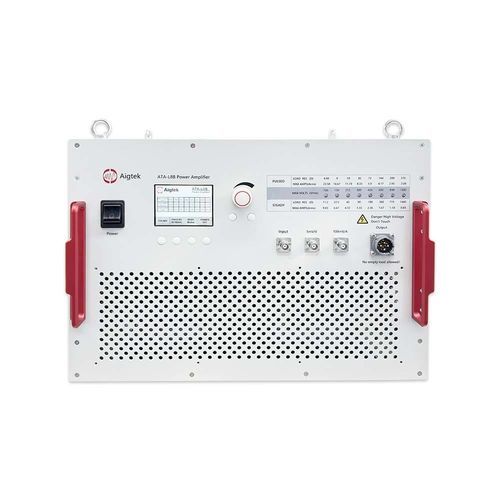

Power amplifier ATA-L8B

voltagedigitalsingle-channel

Product Overview • ATA-L8 is a constant voltage output power amplifier with a bandwidth of 200Hz ~120kHz, amaximum output voltage of 1020Vrms, and a maximum output power of 1000VA. • This product features four-guadrant output characteristics, capable of both sourcing and sinking current.making it suitable for driving various types of loads.Product Features • High Output Voltage and Power The product has a bandwidth of 200Hz~120kHz, with a maximum output voltage of 1020Vrms and amaximum output power of 1000VA • Digital Gain Control The output voltage gain is digitally adjustable, allowing adjustment of the output voltage percentage. • Protection Function The product features output overcurrent protection and overtemperature protection. • Output Monitoring Function Equipped with voltage and current monitoring ports, this product can be directly connected to anoscilloscope for monitormg the output voltage and current. • Program Control Function The parameters displayed on the LD screen can be configured using the front panel buttons orexternal program control. Application Scenarios • Sonar detection • Underwater communication • Underwater imaging • Channel planning • Topography and geomorphology surveying • Eddy current non-destructive testing • Hydroacoustic transducer testing • Helmholtz coil testing
