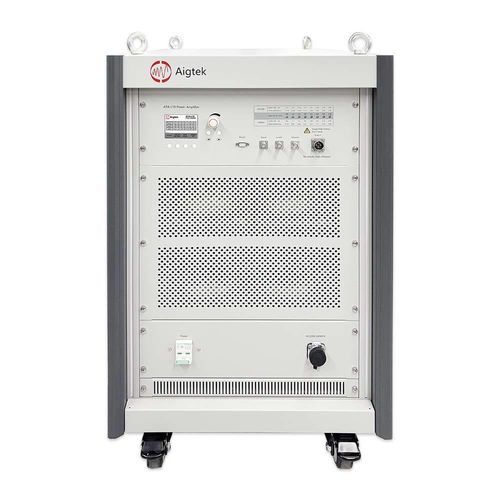

Signal amplifier ATA-L10

voltageinstrumentationsingle-channel

The ATA-L10 is an ideal single-channel power amplifier. It delivers a maximum output voltage of 1200Vrms and a maximum power of 1300VA. It is capable of driving 0~100% of both resistive and non-resistive loads. The output impedance is matched with multiple selectable ranges, allowing users to adjust according to specific testing requirements. LCD PANEL DISPLAY The ATA-L10 features an LCD display that dynamically displays device status and parameters. The user interface is intuitive, clear, and easy to understand, ensuring a user-friendly experience. Input Single-ended input via a BNC connector. Monitor Output Current Monitor: 100mV/A Output Voltage Monitor: 5mV/V The output monitoring port uses a BNC connector and can be directly connected to an oscilloscope for real-time monitoring. Output The output impedance is matched with multiple selectable voltage ranges. According to testing requirements, the output can be adjusted by setting the desired voltage percentage (0~100%) within the corresponding range. The device features Over Temperature Protection and Over Load Protection. The LCD panel displays the current protection status, and output can only be resumed after the fault has been cleared.
